UPS , Power Back up and accessories

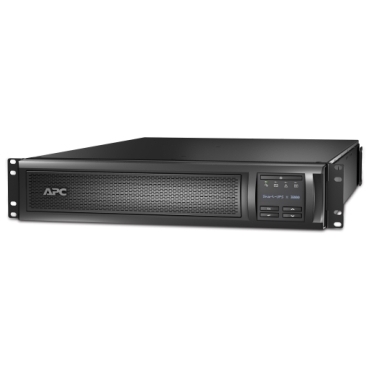

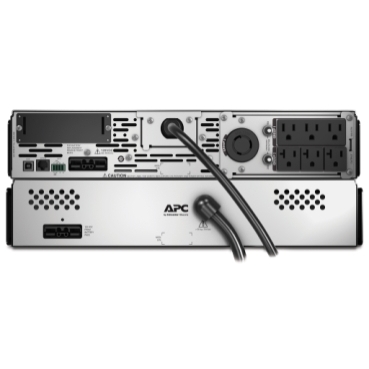

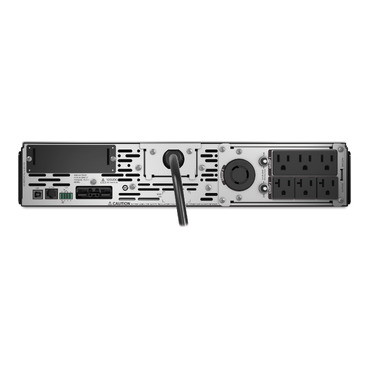

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-30R NEMA, SmartSlot, Extended runtime [TAA]
- 2880VA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
AED17,899.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Category | Specification |
|---|---|
| Lead Time | Usually Ships within 2 Weeks |
Main
| Category | Specification |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
Complementary
| Category | Specification |
|---|---|
| Communication Port | SmartSlot |
Batteries & Runtime
| Category | Specification |
|---|---|
| Battery Type | Lead-Acid battery |
| Extendable Run Time | Yes |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Battery Life | 3ā5 years |
| Replacement Battery | APCRBC117 |
| Battery Charge Power | 245 W rated |
General
| Category | Specification |
|---|---|
| Provided Equipment | CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable |
| Number of Power Modules | 0 |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-Family | TAA compliance |
| Redundant | No |
Physical
| Category | Specification |
|---|---|
| Rack Unit | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 3.35 in (8.5 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 26.26 in (66.7 cm) |
| Net Weight | 84.77 lb (38.45 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No |
| USB Compatible | Yes |
Input
| Category | Specification |
|---|---|
| Main Input Voltage | 120 V |
| Other Input Voltages | 100 V, 110 V, 127 V |
| Input Connection Type | NEMA L5-30P |
| Efficiency at Full Load | 70ā153 V |
| Input Frequency | 50/60 Hz Ā± 3 Hz auto-sensing |
Output
| Category | Specification |
|---|---|
| Main Output Voltage | 120 V |
| Other Output Voltages | 100 V, 110 V, 127 V |
| kW Rating | 2700 W |
| Rated Power (VA) | 2880 VA |
| Output Connection Type | 3 Ć NEMA 5-15R, 3 Ć NEMA 5-20R, 1 Ć NEMA L5-30R |
| Harmonic Distortion | Less than 5% |
| Max Configurable Power (VA / Watts) | 2880 VA / 2700 W |
| Transfer Time | 2ā4 ms (4 ms typical, 8 ms max) |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (Sync to Mains) | 50/60 Hz Ā± 3 Hz |
Conformance
| Category | Specification |
|---|---|
| Product Certifications | BSMI, CSA, NOM, TAA compliance, TĆV, VCCI Class A |
| Equipment Protection Policy | Lifetime: $150,000 |
Environmental
| Category | Specification |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 276 Btu/h |
| Operating Altitude | 0ā10,000 ft |
| Operating Temperature | 32ā104 Ā°F (0ā40 Ā°C) |
| Storage Temperature | 5ā113 Ā°F (ā15ā45 Ā°C) |
| Storage Altitude | 0ā50,000 ft (0ā15,240 m) |
| Relative Humidity (Operating/Storage) | 0ā95% (non-condensing) |
