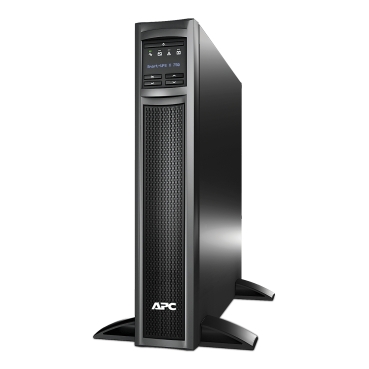

APC Smart-UPS X, Line Interactive, 750VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port, Extended runtime [TAA]
- 750VA/675W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)
- Add up to 5 external battery packs (SMX48RMBP2U)
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
AED6,199.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Specification |
|---|
| Overview |
| Lead Time | Usually in Stock |
| Main |
| Product Type | Uninterruptible Power Supply (UPS) |
| Complementary |
| Communication Port Type | SmartConnect Ethernet port, SmartSlot |
| Software Package | SmartConnect software for remote power monitoring (feature availability varies) |
| Batteries & Runtime |
| Run Time | View Runtime Graph (action_new_window) |
| Efficiency | View Efficiency Graph (action_new_window) |
| Battery Type | Lead-Acid battery |
| Extendable Run Time | Yes (1) |
| Battery Charge Power | 104 W rated |
| Replacement Battery | APCRBC116 (action_new_window) |
| General |
| Provided Equipment | CD with software |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-family | Extended run |
| Redundant | No |
| Physical |
| Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 3.50 in (8.9 cm) |
| Depth | 19.29 in (49 cm) |
| Net Weight | 48.61 lb (22.05 kg) |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted with kit |
| Two-Post Mountable | Yes |
| USB Compatible | Yes |
| Input |
| Main Input Voltage | 120 V |
| Input Connection Type | NEMA 5-15P |
| Max Input Current per Phase | 12 A |
| Max Short Circuit Withstand | 1000 kA |
| Switching Current Capacity | 15 A |
| Efficiency at Full Load | 75…154 V adjustable |
| Input Frequency | 50/60 Hz ±3 Hz auto-sensing |
| Output |
| Main Output Voltage | 120 V |
| kW Rating | 675 W |
| Rated Power in VA | 750 VA |
| Output Connection Type | 8 NEMA 5-15R |
| Max Configurable Power (VA) | 750 VA |
| Max Configurable Power (W) | 675 W |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (sync) | 50/60 Hz ±3 Hz |
| Conformance |
| Certifications | cUL Listed, ENERGY STAR V2.0 (USA), TAA Compliance |
| Environmental |
| Relative Humidity | 0…95% |
| Storage Relative Humidity | 0…95% |
