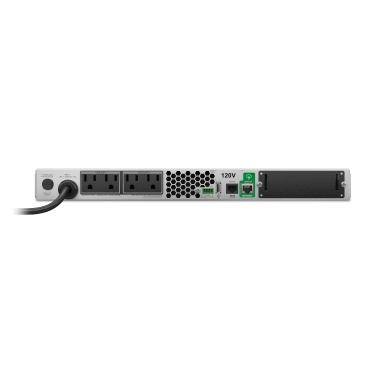

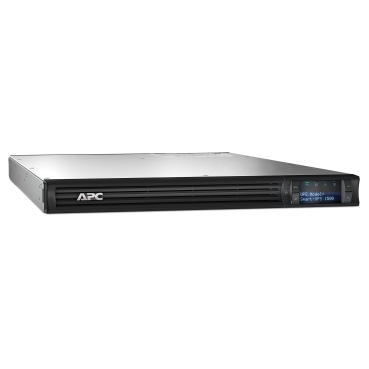

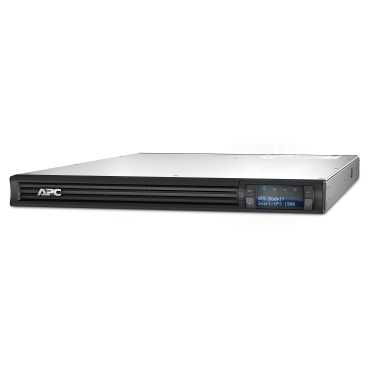

APC Smart-UPS, Line Interactive, 1500VA, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD
- 1440VA/1000W line interactive pure sine wave 1U rackmount UPS
- Ideal for servers, storage, network closets, business VoIP and retail POS
- Automatic Voltage Regulation helps correct utility voltage
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
AED8,299.00
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
Product Overview Table
| Category | Attribute | Details |
|---|---|---|
| Overview | Description | Intelligent and efficient network power protection from entry-level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs, and other network devices. |
| Lead Time | Usually in Stock |
Main Specifications
| Attribute | Details |
|---|---|
| Run Time for Load | 1000 W (Min-Max: 100–1000 W), 4 min 45 s |
| Max Capacity Used | 100% |
| Input Voltage | 120 V |
| Output Voltage | 120 V |
| Power Rating (W) | 1000 W |
| Power Rating (VA) | 1440 VA |
| UPS Type | Uninterruptible Power Supply (UPS) |
| Input Connection Type | NEMA 5-15P |
| Output Connection Type | 4 × NEMA 5-15R |
| Rack Units | 1U |
| Cable Length | 8 ft (2.4 m) |
| Battery Type | Lead-Acid |
| Provided Equipment | Installation guide, Rack mounting support rails, RS-232 cable, USB cable, Safety guide |
Communication & Software
| Attribute | Details |
|---|---|
| Ports | SmartConnect Ethernet, USB, Serial, SmartSlot |
| Software Package | SmartConnect (Remote monitoring; availability varies by terms) |
Batteries & Runtime
| Attribute | Details |
|---|---|
| Battery Voltage | 36V |
| Extendable Runtime | No (0) |
| Battery Capacity | 54 Ah |
| Included Battery Modules | 0 |
| Empty Battery Slots | 0 |
| Recharge Time | 4 h |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC88 |
| Battery Charge Power | 73 W rated |
General Configuration
| Attribute | Details |
|---|---|
| Power Modules Installed | 0 |
| Filled Power Module Slots | 0 |
| Free Power Module Slots | 0 |
| Redundant | No |
Physical Characteristics
| Attribute | Details |
|---|---|
| Color | Black |
| Height | 1.73 in (4.4 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 26.18 in (66.5 cm) |
| Net Weight | 54.01 lb (24.5 kg) |
| Mounting | Rack-mounted, Front, Lower |
| Two-Post Mountable | No |
| USB Compatible | Yes |
Input Specifications
| Attribute | Details |
|---|---|
| Max Input Current/Phase | 12 A |
| Input Protection | Circuit Breaker |
| Input Power Factor at Full Load | 0.7 |
| Plug Standard | 5-15P |
| Efficiency at Full Load | 93.5% |
| Input Voltage Range | 85–155 V adjustable, 93.5–143 V typical |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |
Output Specifications
| Attribute | Details |
|---|---|
| Crest Factor | 2.5:1 |
| Harmonic Distortion | <5% |
| Max Configurable Power | 1000 W / 1440 VA |
| Max Output Current | 12 A |
| Voltage Tolerance | ±2% |
| Transfer Time | 4 ms typical, 8 ms max |
| Topology | Line Interactive |
| Wave Type | Sine Wave |
| Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
Conformance & Certifications
| Attribute | Details |
|---|---|
| Certifications | ENERGY STAR V2.0 (USA), CSA, UL 1778 5th Edition, FCC Part 15 Class A, cUL |
| Equipment Protection Policy | Lifetime – $150,000 |
Environmental Conditions
| Attribute | Details |
|---|---|
| Acoustic Level | 46 dB |
| Online Thermal Dissipation | 116 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temp. | 32–104°F (0–40°C) |
| Storage Temp. | 5–113°F (-15–45°C) |
| Storage Altitude | 0–50,000 ft |
| IP Rating | IP20 |
| Operating Humidity | 0–95% |
| Storage Humidity | 0–95% |
