CAD UHF Dual Channel 2 Bodypack Wireless Microphone and Guitar System (K)

Add to Wishlist

1,099.00 د.إ

Add to Wishlist
Key Features
  • Up to 400′ Unobstructed Operating Range
  • Balanced XLR Mixed Output
  • Balanced XLR Discrete Output
  • 1/4″ Output for Amp or Mixer
  • Recessed Compact Dipole Antenna
  • Bodypack Transmitters with On/Off/Mute
  • +10 Hours Battery Life
  • Battery Life Indicator on Transmitter
  • Includes Guitar Cable and Headworn Mic

CAD GXLUBBĀ Overview

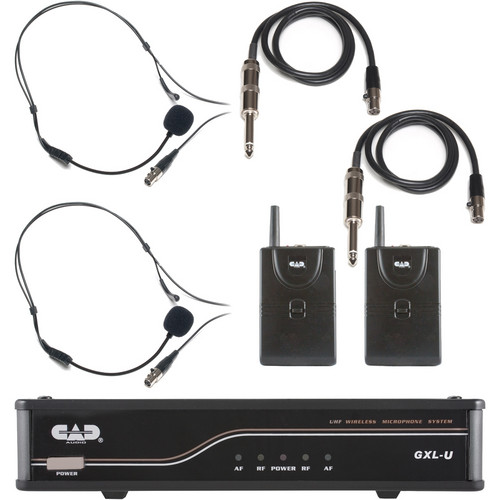

TheĀ CAD UHF Dual Channel 2 Bodypack Wireless Microphone and Guitar System (K)Ā is intended for live sound reinforcement. The system consists of two wireless bodypack transmitters and a two-channel UHF receiver station. The bodypack transmitters feature on, off, and mute functions to conserve battery life. Both operate on two AA batteries and will last for more than 10 hours before requiring recharge or replacement. The bodypack system includes a WXGTR guitar cable and a WXHW headworn condenser microphone for a variety of wireless applications.

The dual-channel receiver features a power button and LED indicators for power, radio signal, and audio signal. The back of the device includes a DC power jack, volume controls for channels A and B, balanced XLR connectors for channels A and B, and an unbalanced 1/4″ connector for channel B. The top of the device features a recessed compact dipole antenna for improved reception of the UHF spectrum.

SKU: GXLUBB-K Category: Tag:

CAD GXLUBBĀ Specs

Receiver
Maximum Output Level 6 dBV
Output Impedance 800 Ī©
Frequency Response 20 to 20,000 Hz
Frequency Band UHF
Transmission Channels K: 543.1 MHz / 554.5 MHz
RF Sensitivity -105 dBm
Working Range Up to 400′ (122 m)
Output Connectors 2 x balanced XLR-Male
1 x unbalanced 1/4″
Dimensions (W x D x H) 15 x 11 x 3.0″ (38 x 28 x 7.6 cm)
Weight 3.0 lb (1.4 kg)
Bodypack Transmitter
Frequency Response 40 to 20,000 Hz
Dynamic Range >105 dBA
Maximum Input Level Microphone Input: -6 dBV
Instrument Input: +10 dBV
Transmitter RF Output: 10 mW
Modulation FM
Power Requirements 2 x AA alkaline or rechargeable batteries
Battery Life >10 hours (alkaline)
Dimensions Not specified by the manufacturer
Weight Not specified by the manufacturer
Packaging Info
Package Weight 2.85 lb
Box Dimensions (LxWxH) 15.3 x 11.1 x 3.1″
