Cisco Catalyst 3850-24XS-E 24 SFP/SFP+ – 1G/10G – IP Services – Wireless controller – managed- stackable- rack-mountable WS-C3850-24XS-E Switch

Overview

This is an advanced enterprise-class, stackable, access layer switch. It provides full convergence between wired and wireless networks on a single platform.

  • Support for up to 100 access points and 2000 wireless clients on each switching entity
  • Dual redundant, modular power supplies and three modular fans providing redundancy
  • Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF), and enhanced security features

    WS-C3850-24XS-E Overview

    Cisco next generation Catalyst WS-C3850-24XS-E is stackable enterprise level switch and integrated with 24 ports of SFP+ 10G Ethernet fiber connection with Flexible Netflow feature. It offers IP Services feature set.

    Quick Specs

    Table 1 shows the Quick Specs.

    Product Code WS-C3850-24XS-E
    Enclosure Type 1 RU
    Feature Set IP Services
    Network SFP uplink module selection C3850-NM-4-10G

    C3850-NM-8-10G

    C3850-NM-2-40G
    Ports 24 Ɨ 10/100/1000 10G SFP+ Optical ports
    Maximum stacking number 9
    Stack bandwidth 480 Gpbs
    RAM 4 GB
    Flash Memory 4 GB
    Dimensions (WDH) 44.5 cm x 45 cm x 4.45 cm

    Product Details

    Figure 1 shows the front panel of the Cisco WS-C3850-24XS-E with blank network module.



    Note:

    ā‘  UID (blue beacon) ā‘¤ USB Type A storage port
    ā‘” Mode button ā‘„ 24 Ɨ 10/100/1000 10G SFP+ Optical ports
    ā‘¢ Status LEDs ā‘¦ Network SFP uplink module slot
    ā‘£ USB mini-Type B (console) port

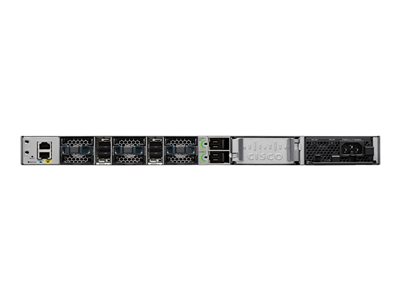

    Figure 2 shows the back panel of the Cisco WS-C3850-24XS-E.



    Noteļ¼š

    ā‘  Ground connector ā‘¤ Power supply modules
    ā‘” CONSOLE (RJ-45 console port) ā‘„ Fan module
    ā‘¢ StackWise port connector ā‘¦ MGMT port
    ā‘£ StackPower connector ā‘§ Reset Button

    Figure 3 shows theĀ StackWise-480 and StackPower connectors.

    This switch with IP Services feature set can only stack with other Catalyst 3850 Series IP Services switches.



    The Modules and Accessories

    Table 2 shows some recommended modules and accessories of this switch.

    Models Description
    C3850-NM-4-10G Cisco 3850 Series Network Module C3850-NM-4-10GĀ Ā  4 x 10GE Network Module
    C3850-NM-8-10G Cisco 3850 Series Network Module C3850-NM-8-10G 8 x 10GE Network Module
    PWR-C1-715WAC Cisco 3850 Series Power Supply 715W AC
    PWR-C1-715WAC/2 Cisco 3850 Series Secondary Power Supply 715W AC Config 1 Secondary Power Supply
    STACK-T1-50CM= Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch
    STACK-T1-1M= Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch

    Compare to Similar Items

    Table 3 shows the comparison between WS-C3850-24XS-E and WS-C3850-24S-E.

    Models WS-C3850-24XS-E WS-C3850-24S-E
    Feature Set IP Services IP Services
    Ports 24 Ɨ 10/100/1000 10G SFP+ Optical ports 24 Ɨ 10/100/1000 SFP Optical ports
    Network SFP uplink module selection C3850-NM-4-10G

    C3850-NM-8-10G

    C3850-NM-2-40G

    		 C3850-NM-4-1G

    C3850-NM-2-10G
SKU: WS-C3850-24XS-E Category: Tags: , , , , , , , , , , , ,

WS-C3850-24XS-E Specification

WS-C3850-24XS-E Specification

model info:

WS-C3850-24XS-E

enclosure type

Rack-mountable – 1U

Ports

24 x SFP+ ports

Network management Interface

ā—Ā Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
ā—Ā Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

None

Switching Capacity

320Gbps

Maximum stacking number

up to 9 switches with same IOS feature set in same series

Stack Bandwidth

480Gbps

Forwarding Performance

454.55Mpps

FNF entries

48,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

4 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

ā—Ā C3850-NM-4-1G: 4 x 1G uplinks network module
ā—C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module

Stacking cable

ā—STACK-T1-50CM StackWise stacking cable with a 0.5 m length
ā—STACK-T1-1M StackWise stacking cable with a 1.0 m length
ā—STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

ā—CAB-SPWR-30CM stack power cable with a 30CM length
ā—CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-715WAC

Power Device

Power supply – redundant – plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

205.5 (Max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (45.0 cm)

Height

1.75 Inches (4.45 cm)

Weight

13.5 Pounds (6.1 Kg)

Rack Mounting Kit

optional

Ā MTBF in hours

307,990

Compliant Standards

ā—Ā IEEE 802.1D Spanning Tree Protoco
ā—Ā IEEE 802.1p CoS Prioritization
ā—Ā IEEE 802.1Q VLAN
ā—Ā IEEE 802.1s
ā—Ā IEEE 802.1w
ā—Ā IEEE 802.1X
ā—Ā IEEE 802.1X-Rev
ā—IEEE 802.11
ā—Ā IEEE 802.1ab (LLDP)
ā—Ā IEEE 802.3ad
ā—Ā IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

ā—Ā IEEE 802.3 10BASE-T
ā—Ā IEEE 802.3u 100BASE-TX
ā—Ā IEEE 802.3ab 1000BASE-T
ā—Ā IEEE 802.3z 1000BASE-X
ā—Ā RMON I and II standards
ā—Ā SNMP v1, v2c, and v3

System software / license

System software

IOS IP Service

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Access Point Licenses

ā—L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
ā—L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
ā—LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
ā—LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

ā—EEM ā—RPS SupportĀ ā—Ā Jumbo FramesĀ ā—Ā VLANSĀ ā—Voice VlanĀ ā—VTPv2Ā ā—CDPv2Ā ā—LLDPĀ ā—Ā 802.3ad LACP and PAgP

ā—Ā PVST/PVST+Ā ā—Ā 802.1W/802.1SĀ ā—Port Fast/Uplink FastĀ Ā ā—Dynamic Trunking Protocol (DTP)Ā ā—Ā port CoS Trust

and OverrideĀ ā—Ā Trusted BoundaryĀ ā—Ā ACL ClassificationĀ ā—ingress PolicingĀ ā—Ā Auto QoSĀ ā—Ā Per VLAN policies

ā—Ā 802.1p queuesĀ ā—Ā SchedulingĀ ā—Ā Priority QueuingĀ ā—Ā Configure CoS Priority QueuesĀ ā—Configure CoS Priority

QueuesĀ ā—Ā Configure Queue WeightsĀ ā—Ā Configure Buffers and ThresholdsĀ ā—Class & Policy MapsĀ ā—Ā Modify CoS

and DSCP MappingĀ ā—Ā Weighted Tail DropĀ ā—Ā IGMPv1,v2,v3 and MLDv1, v2Ā ā—Ā DHCP serverĀ ā—Ā DSCP transparency

ā—Ā HSRP, VRRP, BLGPĀ ā—Ā RIPv1, v2 EIGRP, PIMĀ Ā OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4Ā Ā ā—Ā VRF-liteĀ Ā ā—Ā PIM-SM/DM,

PIM sparse-dense mode, SSMĀ ā—Ā Flexible Netflow

Advanced Network security

ā—Ā Port securityĀ ā—Ā DHCP snoopingĀ ā—Dynamic ARP inspection (DAI)Ā ā—Ā IP source guardĀ ā—The Unicast Reverse Path Forwarding (uRPF)
ā—Ā Bidirectional data support on a SPANĀ ā—Ā User authentication
ā—Ā Private VLANĀ Ā ā—Router and VLAN ACLsĀ Ā ā—Ā complete identity and security
ā—Ā Multidomain authenticationĀ ā—Ā MAC address notification
ā—Ā IGMP filteringĀ ā—Ā Cisco security VLAN ACL
ā—Ā Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
ā—Ā Port-based ACLsĀ ā—Ā TrustSec SXPĀ ā—Ā IEEE 802.1ae
ā—Ā TACACS+ and RADIUS authenticationĀ ā—Ā Cisco standard and extended IP security router ACLs
ā—Ā Ā Bridge protocol data unit (BPDU) Guard
ā—Ā Spanning Tree Root Guard (STRG)Ā ā—Ā Wireless end-to-end security

Management

ā—BRIDGE-MIBĀ ā—CISCO-AUTH-FRAMEWORK-MIB
ā—CISCO-BGP4-MIB, BGP4-MIBĀ ā—CISCO-BRIDGE-EXT-MIB
ā—CISCO-BULK-FILE-MIBĀ ā—CISCO-CABLE-DIAG-MIB
ā—CISCO-CALLHOME-MIBĀ ā—CISCO-CEF-MIB
ā—CISCO-CIRCUIT-INTERFACE-MIB
ā—CISCO-ENTITY-VENDORTYPE-OID-MIB
ā—CISCO-CONTEXT-MAPPING-MIB
ā—CISCO-DEVICE-LOCATION-MIBĀ ā—CISCO-DHCP-SNOOPING-MIB
ā—CISCO-EIGRP-MIB
ā—CISCO-EMBEDDED-EVENT-MGR-MIB
ā—CISCO-ENTITY-FRU-CONTROL-MIBĀ ā—CISCO-ENTITY-SENSOR-MIB
ā—ENTITY-MIBĀ ā—CISCO-ERR-DISABLE-MIB
ā—CISCO-CONFIG-COPY-MIBĀ ā—CISCO-FLOW-MONITOR-MIB
ā—CISCO-FTP-CLIENT-MIBĀ ā—CISCO-HSRP-EXT-MIB
ā—CISCO-HSRP-MIBĀ ā—CISCO-IETF-ISIS-MIB
ā—CISCO-IF-EXTENSION-MIBĀ ā—CISCO-IGMP-FILTER-MIB
ā—CISCO-CONFIG-MAN-MIBĀ ā—CISCO-IP-CBR-METRICS-MIB
ā—CISCO-IPMROUTE-MIBĀ ā—CISCO-IP-STAT-MIB
ā—CISCO-IP-URPF-MIBĀ ā—CISCO-L2L3-INTERFACE-CONFIG-MIB
ā—CISCO-LAG-MIBĀ ā—CISCO-LICENSE-MGMT-MIB
ā—CISCO-MAC-AUTH-BYPASS-MIBĀ ā—CISCO-MAC-NOTIFICATION-MIB
ā—CISCO-MDI-METRICS-MIBĀ ā—CISCO-FLASH-MIBĀ ā—CISCO-OSPF-MIB
ā—CISCO-OSPF-TRAP-MIBĀ ā—CISCO-PAE-MIBĀ ā—CISCO-PAGP-MIB
ā—CISCO-PIM-MIBĀ ā—CISCO-PING-MIBĀ ā—CISCO-PORT-QOS-MIB
ā—CISCO-PORT-SECURITY-MIBā—CISCO-PORT-STORM-CONTROL-MIB
ā—CISCO-POWER-ETHERNET-EXT-MIBĀ ā—CISCO-PRIVATE-VLAN-MIB
ā—CISCO-PROCESS-MIBĀ ā—CISCO-PRODUCTS-MIBā—CISCO-RF-MIB
ā—CISCO-RTP-METRICS-MIBĀ ā—CISCO-RTTMON-MIB
ā—CISCO-SMART-INSTALL-MIB

ā—CISCO-SNMP-TARGET-EXT-MIBĀ ā—CISCO-STACKMAKER-MIB
ā—CISCO-MEMORY-POOL-MIBĀ ā—CISCO-STP-EXTENSIONS-MIB
ā—CISCO-SYSLOG-MIBĀ ā—CISCO-TCP-MIBĀ ā—CISCO-UDLDP-MIB
ā—CISCO-VLAN-IFTABLE-RELATIONSHIP-MIBĀ ā—CISCO-VLAN-MEMBERSHIP-MIBĀ ā—CISCO-VTP-MIBĀ ā—EtherLike-MIB
ā—HC-RMON-MIBĀ ā—IEEE8021-PAE-MIBĀ ā—IEEE8023-LAG-MIB
ā—IF-MIBĀ ā—IGMP-MIBĀ ā—IGMP-STD-MIBĀ ā—IP-FORWARD-MIB
ā—IP-MIBĀ ā—IPMROUTE-STD-MIBĀ ā—LLDP-EXT-MED-MIB
ā—LLDP-MIBĀ ā—NOTIFICATION-LOG-MIB
ā—OLD-CISCO-MEMORY-MIBĀ ā—CISCO-CDP-MIB
ā—POWER-ETHERNET-MIBĀ ā—RMON2-MIB
ā—RMON-MIBĀ ā—SNMP-COMMUNITY-MIBĀ ā—SNMP-FRAMEWORK-MIB
ā—SNMP-MPD-MIBĀ ā—SNMP-NOTIFICATION-MIBĀ ā—SNMP-PROXY-MIB
ā—SNMP-TARGET-MIBĀ ā—SNMP-USM-MIBĀ ā—SNMPv2-MIB
ā—SNMP-VIEW-BASED-ACM-MIBĀ ā—TCP-MIBĀ ā—UDP-MIB
ā—CISCO-IMAGE-MIBĀ ā—CISCO-STACKWISE-MIB
ā—AIRESPMACE-WIRELESS-MIBĀ ā—CISCO-LWAPP-IDS-MIB
ā—CISCO-LWAPP-AP-MIBĀ ā—CISCO-LWAPP-CCX-RM-MIB
ā—CISCO-LWAPP-CLIENT-ROAMING-MIB
ā—CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
ā—CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
ā—CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
ā—CISCO-LWAPP-DOT11-CLIENT-MIBĀ ā—CISCO-LWAPP-DOT11-MIB
ā—CISCO-LWAPP-DOWNLOAD-MIBĀ ā—CISCO-LWAPP-LINKTEST-MIB
ā—CISCO-LWAPP-MFP-MIBĀ ā—CISCO-LWAPP-MOBILITY-EXT-MIB
ā—CISCO-LWAPP-QOS-MIBĀ ā—CISCO-LWAPP-REAP-MIB
ā—CISCO-LWAPP-ROGUE-MIBĀ ā—CISCO-LWAPP-RRM-MIB
ā—CISCO-LWAPP-SI-MIBĀ ā—CISCO-LWAPP-TSM-MIB
ā—CISCO-LWAPP-WLAN-MIBĀ ā—CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

ā—Ā Cisco SMARTnet ServiceĀ ā—Ā Cisco Smart Foundation ServiceĀ ā—Ā Cisco SP Base ServiceĀ ā—Ā Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ĀŗF to 113ĀŗF (-5ĀŗC to +45ĀŗC)

Operating temperature up to 10,000 ft (3000 m)

23ĀŗF to 104ĀŗF (-5ĀŗC to +40ĀŗC)

Short-term exception at sealevel with single fan failure

23ĀŗF to 113ĀŗF (-5ĀŗC to +45ĀŗC)

Short-term exception up to 5000 feet (1500 m)

23ĀŗF to 122ĀŗF (-5ĀŗC to 50ĀŗC)

Short-term exception up to 10,000 feet (3000 m)

23ĀŗF to 113ĀŗF (-5ĀŗC to 45ĀŗC)

With DC power supply Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ĀŗF to 113ĀŗF (-5ĀŗC to +45ĀŗC)

Operating temperature up to 10,000 ft (3000 m)

23ĀŗF to 104ĀŗF (-5ĀŗC to +40ĀŗC)

Operating temperature up to 13,000 ft (4000m)

23ĀŗF to 95ĀŗF (-5ĀŗC to 35ĀŗC)

Short-term exception up to 6,000 feet (1800 m)

23ĀŗF to 131ĀŗF (-5ĀŗC to +55ĀŗC)

Short-term exception up to 10,000 feet (3000 m)

23ĀŗF to 122ĀŗF (-5ĀŗC to +50ĀŗC)

Short-term exception up to 13,000 feet (4000 m)

23ĀŗF to 113ĀŗF (-5ĀŗC to +45ĀŗC)

Short-term exception at sealevel with single fan failure

23ĀŗF to 113ĀŗF (-5ĀŗC to +45Āŗ)

Storage environment

Ā -40ĀŗF to 160ĀŗF (-40ĀŗC to 70ĀŗC)

Operating altitude

Up to 13,000 Feet (Up to 4000 Meters)

Storage altitude

Up to 15,000 Feet (Up to 4573 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Cisco Catalyst 3850-24XS-E 24 SFP/SFP+ – 1G/10G – IP Services – Wireless controller – managed- stackable- rack-mountable WS-C3850-24XS-E Switch”

There are no reviews yet.

Related products
