Drive large databases, ERP, HPC and other demanding workloads with 4-socket performance, scalable memory and powerful IO.
MULTIPLE OPTIONS ARE AVAILABLE DEPENDING UPON THE CONFIGURATION, PLEASE ASK FOR A CUSTOMIZEDĀ QUOTE BASED UPON YOUR REQUIREMENTS.
Unleash scalable performance

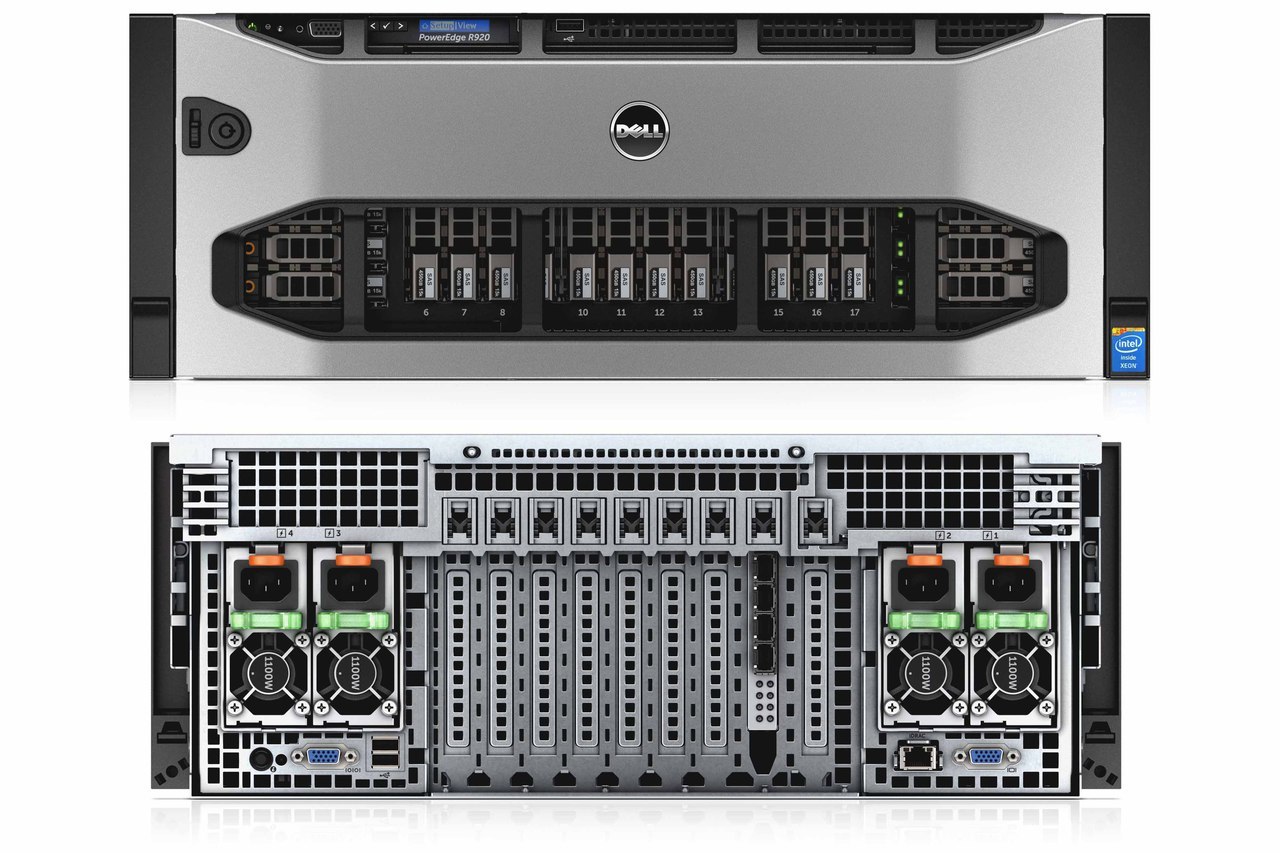

Perform more transactions in less time with the massive memory footprint and tremendous caching capacity of the PowerEdge R920, the most powerful rack server in the PowerEdge portfolio. It introduces to the PowerEdge lineup theĀ next generation of IntelĀ® XeonĀ® processor E7 v2 product family, which combines up to 15 cores per processor with a large memory capacity, high-performing threads and hardware-based advanced reliability features designed to:
- Process and analyze large amounts of data in real time
- DeliverĀ real-time business intelligence
- Drive faster decision making
- Increase productivity and profitability
The PowerEdge R920 enables you to boost business-application effectiveness, deliver exceptional database performance and efficiently consolidate workloads with large-scale virtualization. The 4-socket, 4U server, with built-in expandability, allows you to grow easily and quickly with:
- 96 DIMM slotsĀ (up to 6TB2Ā RAM) for in-memory databases and large-scale virtualization
- Up to 10 PCIe Gen3/Gen2 slotsĀ to create a highly flexible infrastructure and permit large enterprise SAN environments
- Up to 24 internal drivesĀ (4- to 24-drive options) with fast 12Gbps SAS HDDs and up to eight Express Flash SSDs for tiered, high-speed data access
As a powerful server for large enterprises, the R920 supports centralizedĀ business applications, such as customer relationship management (CRM) and enterprise resource planning (ERP) with critical databases, and can even provide consolidation of these performance-sensitive applications using large-scale virtualization. It is ideal for mission-critical environments where performance, expandability and reliability are indispensable.
Expand IO capabilities
Gain up to 100 percent more IOPS performance than previous-generation PowerEdge servers with theH730P PowerEdge RAID Controller (PERC), a high-performance RAID controller for direct-attached storage (DAS). Taking full advantage of 12Gbps SAS throughput, this PERC enables workload-optimized performance, with RAID6 and RAID60 as standard features. Agentless management through iDRAC7 enables PERC configuration, deployment, updating and monitoring through a simple GUI or command line interface.
Operate confidently
Keep your data center running in top condition with the enhanced reliability features of the PowerEdge R920, including:
- Intel Run Sure technologyĀ that helps improve system diagnostic and predictive failure analysis to reduce service costs and increase system uptime
- Dell Fault Resilient MemoryĀ that provides a protected hypervisor memory zone for VMware environments andĀ DualĀ SD redundant hypervisorfor highly available failsafe virtualization
- RedundantĀ hot-plug power supply units and fans
Managing R920 servers is simplified with intelligent, hardware-driven management that features:
- Extensive power management
- Integration into virtual consoles
- Automation for parts replacement
Dell ProSupport
Enhanced systems management
Processor
- IntelĀ® XeonĀ® processor E7-4800 v2 and E7-8800 v2 product families (up to 4);
Intel Xeon processor E7-2800 v2 product family (up to 2)
Operating System
- MicrosoftĀ® Windows ServerĀ® 2012 R2 (includes Hyper-VĀ®)
Microsoft Windows Server 2012 (includes Hyper-V)
NovellĀ® SUSEĀ® Linux Enterprise Server
Red HatĀ® Enterprise LinuxĀ®
VMware vSphereĀ® ESXiā¢
Chipset
- Intel C602J
Memory1
- Up to 6TB (96 DIMM slots):4GB/8GB/16GB/32GB/64GB DDR3L, RDIMM, LR-DIMM up to 1600MT/s
Storage
- 24 x 1.2TB HDD orĀ
16 x 1.2TB HDD + 8 x 1.6TB PowerEdge Express Flash NVMe PCIe SSDsĀ Supported drives
Hot-plug hard drive options:
2.5ā SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5ā PCIe SSDs: Dell PowerEdge NVMe Express Flash PCIe SSD
Drive Bays

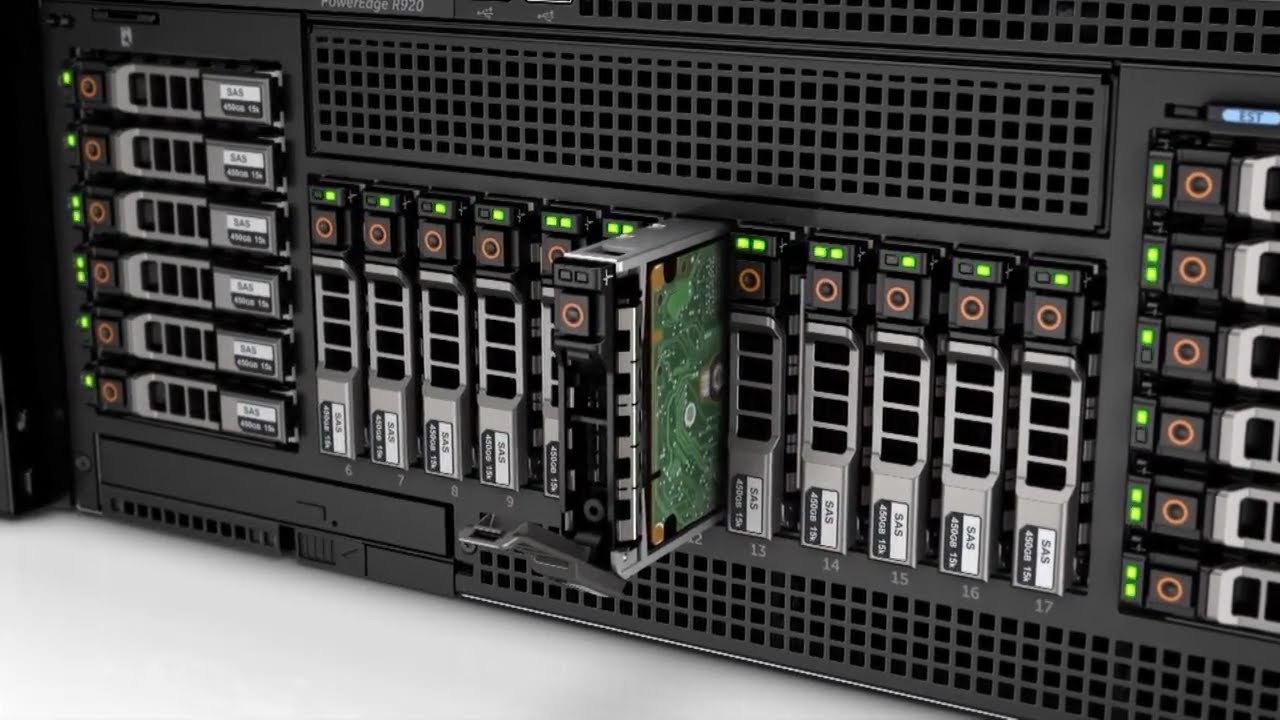

- Up to 24 2.5ā hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD
Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)RAID Controllers:Internal controllers:
PERC H730PExternal controllers:
PERC H8106Gbps SAS HBA
Slots
- I/O slots:
Up to 10 PCIe slots; 8 PCIe 3.0, + 1 RAID slot, + 1 NDC slot + 2 optional PCIe slots
Communications
- Embedded NICs:
BroadcomĀ® 5720 QP 1Gb Network Daughter Card
Broadcom 57800 2x10Gb DA/SFP+ + 2x1Gb BT Network Daughter Card
Broadcom 57800 2x10Gb BT + 2x1Gb BT Network Daughter Card
Broadcom 57840S Quad Port 10Gb SFP+ Direct Attach Rack Network Daughter Card
Intel Ethernet I350 QP 1Gb Network Daughter Card
IntelĀ X520Ā DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, Network Daughter Card
Intel EthernetĀ X540Ā 10Gb BT DP + I350 1Gb BT DP Network Daughter Card
Power
- Hot-plug redundant PSUs: 750W AC, 1100W AC and DC
Availability
- Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
Video Card
- MatroxĀ® G200 with 8MB memory
Chassis
- Rack support:
ReadyRails II, the sliding rail system for the R920, provides tool-less support for 4-post racks with square or unthreaded round mounting holes, including all generations of Dell racks. The sliding rail system also supports tooled mounting in 4-post threaded racks.Dimensions:
H: 6.8ā (172.6mm)
W: 18.99ā (482.4mm)
D: 31.59ā (802.3mm) with psu and bezel
D: 29.65ā (753mm) without bezel
Management
- Remote management:Ā
iDRAC7 with Lifecycle Controller
iDRAC7 Express (default)
iDRAC7 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMwareĀ® vCenter
Dell OpenManage Connections:Ā
HP Operations Manager, IBM TivoliĀ® NetcoolĀ®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
