Indoor 7dBi Omni-directional Desktop Antenna
EA-IO7D V2
Product Description
Ā

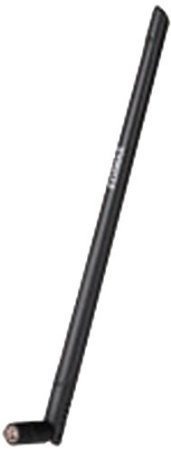

The Edimax EA-IO7D V2 is a high performance 7dBi Omni-directional antenna, designed to improve the wireless network signal and coverage in your home and office. This antenna is Omni-directional so it transmits and receive signals from all direction. It is not only compatible with Edimax devices, but also with most wireless devices equipped with a RP-SMA interface. Full compatibility with 802.11b/g/n standards. No software or driver needed. All you have to do is to unscrew the original antenna from your device and replace it with the EA-IO7D V2 and it starts to work as soon as it is put into position.
- Standards: IEEE 802.11b/g.n. Connector Type : RP-SMA . Wireless Data Rates: Up to 150 Mbps. Peak Gain: 7dB. Frequency Band: 2.400 ~2.500GHz
- Antenna Spec: Detachable Omni-Directional 7Dbi antenna with RP-SMA connector; 50 Ohm impedance; VSWR (Voltage Standing Wave Radio): 2.0 : 1 Max. Power handling: 2 W (c w). Polarization: HPBW/ horizontal: 360 degrees, HPBW/ vertical: 20 to 25 degrees
- Dimensions: Antenna OD : 13 x 280mm
