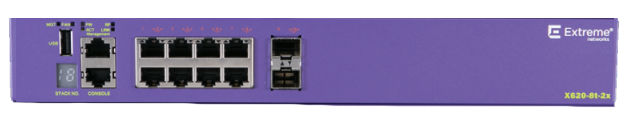

Extreme Networks ExtremeSwitching X620 8-port Switch with 2-port SFP+

Scaling and Performance

• MAC Addresses: 16K
• IPv4 LPM Entries: 480
• IPv4 Hosts
  • with min LPM IPv4 entries: 1500
  • with max LPM IPv4 entries: 1500
• IPv6 LPM (/64) Entries: 240 IPv6 Hosts: 1500 IP Multicast
• Groups: 256
• Max (S,G) entries: 1500
• Latency:
  • SFP+: average 900ns (64 byte packet)
  • 10GBASE-T: average 2.4µsec (64 byte packet)
• 4092 user-created VLAN/VMANs
• 9216 Byte Max Packet Size (Jumbo Frame)
• 128 load sharing trunks, up to 8 members per trunk
• ACLs 2048 ingress / 512 egress
• Ingress and egress bandwidth policing/rate limiting per flow/ACL
• 1,024 ingress bandwidth meters, 256 egress meters
• 8 QoS egress queues/port
• Egress bandwidth rate shaping per egress queue and per port
• Rate Limiting Granularity: 8 Kbps
• All ports only full duplex at all speeds
  • Policy Capabilities
  • Policy Profiles: 63
  • Rules per Profile: Up to 440
  • Authenticated Policy Users per Switch: Up to 256
  • Authenticated Policy Users per Port: Up to 256
  • Unique Permit/Deny Rules per switch: 440
    • MAC Rules: N/A
    • IPv4 Rules: 256
    • IPv6 Rules: N/A
    • L2 Rules: 184
• Rate Limiting: Per Class of Service
• Data Center Bridging
  • DCBx Data Center Bridging Exchange Protocol
  • Priority Flow Control (PFC)
  • Enhanced Transmission Selection (ETS)
• Power over Ethernet – X620-16p only
  • 802.3bt 60W 4-Pair PoE++ – Type 3 PSE (Ports 5-12)
  • 802.3at 30W PoE+ (Ports 1-4, 13-16)
• 2.5Gb and 5Gb Ethernet – IEEE 802.3bz and NBASE-T Alliance – X620-16p only
  • 2.5GBASE-T – at least 100m with Cat5e cabling or better
  • 5GBASE-T – at least 100m with Cat6 cabling or better

Environmental Specifications

• EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2 Storage
• EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3 Transportation
• EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e Operational
• EN/ETSI 300 753 (1997-10) – Acoustic Noise
• ASTM D3580 Random Vibration Unpackaged 1.5 G

Environmental Compliance

• EU RoHS: 2011/65/EU
• EU WEEE: 2012/19/EU
• China RoHS: SJ/T 11363-2006

Packaging and Storing Specifications

• Temp: -40° C to 70° C (-40° F to 158° F)
• Humidity: 10% to 95% relative humidity, non-condensing Packaged Shock (half sine): 180 m/s2 (18 G), 6 ms, 600 shocks
• Packaged Vibration: 5 to 62 Hz at velocity 5 mm/s, 62 to 500Hz at 0.2 G
• Packaged Random Vibration: 5 to 20 Hz at 1.0 ASD w/–3 dB/oct. from 20 to 200Hz
• Packaged Drop Height: 14 drops minimum on sides and corners at 42 inches (<15 kg box)

Regulatory and Safety

• North American ITE
  • UL 60950-12nd edition, Listed Device (U.S.)
  • CSA 22.2 No. 60950-12nd edition (Canada)
  • Complies with FCC 21CFR 1040.10 (U.S. Laser Safet y)
  • CDRH Letter of Approval (US FDA Approval)
• European ITE
  • EN 60950-1:2007 2nd Ed.
  • EN 60825-1+A2:2001 (Lasers Safety)
  • 2006/95/EC Low Voltage Directive
• International ITE
  • CB Report & Certificate per IEC 60950-1 2nd Ed. + National Differences
  • AS/NZS 60950-1(Australia / New Zealand)

EMI/EMC Standards

• North American EMC for ITE
  • FCC CFR 47 part 15 Class A (USA)
  • ICES-003 Class A (Canada)
• European EMC Standards
  • North American EMC for ITE
  • FCC CFR 47 part 15 Class A (USA)
  • ICES-003 Class A (Canada)
• International EMC Certifications
  • CISPR 22:2006 Ed 5.2, Class A (International Emissions)
  • CISPR 24:A2:2003 Class A (International Immunity)
  • IEC 61000-4-2:2008/EN 61000-4-2:2009 Electrostatic Discharge, 8kV Contact, 15 kV Air, Criteria A
  • IEC 61000-4-3:2008/EN 61000-4-3:2006+A1:2008 Radiated Immunity 10V/m, Criteria A
  • EC 61000-4-4:2004 am1 ed.2./EN 61000-4-4:2004/A1:2010 Transient Burst, 1 kV, Criteria A
  • IEC 61000-4-5:2005 /EN 61000-4-5:2006 Surge, 2 kV L-L, 2 kV L-G, Level 3, Criteria A
  • IEC 61000-4-6:2008/EN 61000-4-6:2009 Conducted Immunity, 0.15-80 MHz, 10V/m unmod. RMS, Criteria A
  • IEC/EN 61000-4-11:2004 Power Dips & Interruptions, >30%, 25 periods, Criteria C

Country Specific

• VCCI Class A (Japan Emissions)
• ACMA RCM (Australia Emissions)
• CCC Mark
• KCC Mark, EMC Approval (Korea)

Telecom Standards

• CE 2.0 Compliant

IEEE 802.3 Media Access Standards

• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• IEEE 802.3ae 10GBASE-X
• IEEE 802.3an 10GBASE-T
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3bz 2.5GBASE-T
• IEEE 802.3bz 5GBASE-T
• IEEE 802.3u, 100Base-FX
• IEEE 802.3at 30W PoE+
• IEEE 802.3bt 4-Pair 60W PoE++
