HPE Aruba AP-303 (US) – wireless access point JZ321A
Availability:
10 in stock
د.إ1,099.00
10 in stock

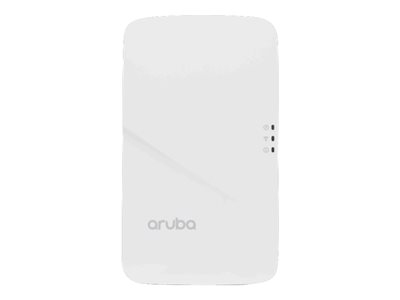

HP JZ321A Aruba AP-303 (US) – Wireless access point – Wi-Fi – Dual Band
The Aruba 303 Series Campus Access Points delivers an affordable high performance 802.11ac with MU-MIMO (Wave 2) for medium density enterprise environments. With the integrated Bluetooth Low Energy (BLE) and supporting 802.3af power, the Aruba 303 enables enterprises to improve their work efficiency and productivity with low TCO. The compact Aruba 303 Series Campus Access Point delivers a maximum concurrent data rate of 867 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 1.2 Gbps). Featuring 2×2:2SS, it is designed for device density environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive.
The Aruba AP-303P models allow you to daisy-chain your wired network to connect and power any network device (IP camera, IOT gateway, or a second access point) to the E1 Ethernet port of the AP-303P.
Simplify and cost-reduce the installation of multiple devices by sharing switch ports and cabling.
AP-303P models support Zigbee 802.15.4 radio to provide connectivity for IoT devices.
2:2:2SS SU-MIMO and MU-MIMO operation, channel width up to 80 MHz.
Unified access points supporting ArubaOS and InstantOS modes.
Mid-range performance and density 802.11ac Wave 2 Access Point
- The Aruba 303 Series Campus Access Points are cost-optimized for delivering 802.11ac Wave 2 performance in medium density environments.
- Designed specifically for moderate performance requirements.
- Supports dual-radio operation in 2.4 GHz and 5 GHz bands.
Unified Access Points Supporting ArubaOS and InstantOS Modes
- The Aruba 303 Series Campus Access Points deliver architectural flexibility, since they can be deployed either with a controller or in controllerless mode.
- Based on the presence of a controller in the network, the Aruba 303 will load the ArubaOS or InstantOS software automatically.
802.11ac Wave 2 With 2×2:24SS, 80MHz, and MU-MIMO
- The Aruba 303 Series Campus Access Points support 802.11ac with Wave 2 features including 2×2:2SS and up to 80 MHz channel bandwidth.
- Radios support transmissions in Multi-User MIMO (MU-MIMO) and Single-User MIMO (SU-MIMO) operating modes.
Integrated BLE Beacon For Location Services and Asset Tracking
- The Aruba 303 Series Campus Access Points have an integrated Bluetooth Low Energy (BLE) beacon to enable Aruba location services such as beacon management, location notifications and navigation.
- The integration of a BLE beacon enables businesses to leverage mobile context to develop applications that deliver an enhanced user experience and increase the value of the network infrastructure.
Overview
The Aruba 303 Series Campus Access Points delivers an affordable high performance 802.11ac with MU-MIMO (Wave 2) for medium density enterprise environments. With the integrated Bluetooth Low Energy (BLE) and supporting 802.3af power, the Aruba 303 enables enterprises to improve their work efficiency and productivity with low TCO. The compact Aruba 303 Series Campus Access Point delivers a maximum concurrent data rate of 867 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 1.2 Gbps). Featuring 2×2:2SS, it is designed for device density environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive.
Unified Access Points Supporting ArubaOS and InstantOS Modes
The Aruba 303 Series Campus Access Points deliver architectural flexibility, since they can be deployed either with a controller or in controllerless mode.
Based on the presence of a controller in the network, the Aruba 303 will load the ArubaOS or InstantOS software automatically.
Integrated BLE Beacon For Location Services and Asset Tracking
The Aruba 303 Series Campus Access Points have an integrated Bluetooth Low Energy (BLE) beacon to enable Aruba location services such as beacon management, location notifications and navigation.
The integration of a BLE beacon enables businesses to leverage mobile context to develop applications that deliver an enhanced user experience and increase the value of the network infrastructure.
Specifications
General
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 5.9 in |
| Depth | 3.4 in |
| Height | 1.6 in |
| Weight | 10.93 oz |
Networking
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Spread Spectrum Method | OFDM, DSSS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Concurrent data rate (5 GHz): 867 Mbps Concurrent data rate (2.4 GHz): 400 Mbps |
| Capacity | Wireless clients per Wi-Fi radio: 255 BSSIDs per radio: 16 |
| Status Indicators | Power, system, status |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), MU-MIMO technology, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, wireless intrusion protection |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac |
Antenna
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
| Gain Level | 5.6 dBi |
Expansion / Connectivity
| Interfaces | 1 x 1000Base-T (uplink) – RJ-45 2 x 1000Base-T – RJ-45 1 x 1000Base-T (PoE) 1 x USB 2.0 – Type A 1 x console |
Miscellaneous
| Included Accessories | Single-gang wall-box |
| MTBF | 1090000 hours |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, UL 2043, FCC, EN 60601-1-2, cTUVus, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC |
Power
| Power Consumption Operational | 15.6 Watt |
Manufacturer Warranty
| Service & Support | Limited warranty – lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 93% (non-condensing) |
| General | |
|---|---|
| Depth | 3.4 in |
| Device Type | Wireless access point |
| Height | 1.6 in |
| Ruggedized Design | Indoor |
| Weight | 10.93 oz |
| Width | 5.9 in |
| Antenna | |
|---|---|
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Directional |
| Gain Level | 5.6 dBi |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 5 – 93% (non-condensing) |
| Max Operating Temperature | 104 °F |
| Min Operating Temperature | 32 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 1 x 1000Base-T (uplink) – RJ-45 ¦ 2 x 1000Base-T – RJ-45 ¦ 1 x 1000Base-T (PoE) ¦ 1 x USB 2.0 – Type A ¦ 1 x console |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, UL 2043, FCC, EN 60601-1-2, cTUVus, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC |
| Included Accessories | Single-gang wall-box |
| MTBF | 1090000 hours |
| Networking | |
|---|---|
| Capacity | Wireless clients per Wi-Fi radio: 255 ¦ BSSIDs per radio: 16 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Data Transfer Rate | 867 Mbps |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), MU-MIMO technology, enhanced ClientMatch, Aruba Beacons Bluetooth Low-Energy (BLE) technology, wireless intrusion protection |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Performance | Concurrent data rate (5 GHz): 867 Mbps ¦ Concurrent data rate (2.4 GHz): 400 Mbps |
| Spread Spectrum Method | OFDM, DSSS |
| Status Indicators | Power, system, status |
| Power | |
|---|---|
| Power Consumption Operational | 15.6 Watt |
