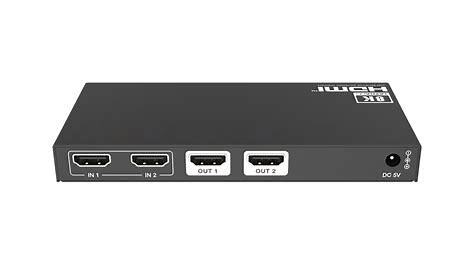

KanexPro 2×2 8K HDMI Switch/Splitter

Add to Wishlist
  • Switch 2 Video Sources onto 2 Displays
  • 2 x HDMI Inputs, 2 x HDMI Outputs
  • Supports Video up to UHD 8K60
  • HDR, Dolby Vision & HDCP 2.2 Compliant
  • Embedded Dolby/DTS Audio Support
  • Built-In Equalizer, Retiming, Driver
  • Advanced EDID Management

AED999.00

Add to Wishlist

TheĀ 2×2 8K HDMI Switch/SplitterĀ fromĀ KanexProĀ is a compact two-input, two-output HDMI matrix, featuring HDCP 2.3 with the latest HDMI 2.1 specifications and supporting up to 8K60 / 4K120 resolutions. This simple matrix switcher can be fully controlled via IR or via the front-panel buttons to choose which source is displayed on which of the two displays.

HDCP 2.2 authentication is present at all times on this matrix, ensuring proper handshake of the protected content. High dynamic range video formats are supported, including HDR, Dolby Vision, and HLG, along with high-quality embedded audio, including LPCM, Dolby, and DTS formats. Other features include advanced EDID management, built-in timer/equalizer/driver to maintain signal quality over long distances, and a 40 Gb/s bandwidth.

Applications
The matrix switcher is designed for use in education, retail stores, and residential/smart home theater applications where multiple source devices may need to be transmitted to a single or dual display, while allowing all devices to be connected to a single home theater system.
HDMI 2.1 and HDCP 2.3 Compliant
The switcher meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.
40 Gb/s Bandwidth
The unit can handle high-speed data transfer up to 40 Gb/s, allowing seamless transmission of high-quality audio and video signals.
Supports up to 8K60 Resolution
Various video formats and resolutions are supported, including up to 8K60 resolution at different frame rates and color depths as well as up to 4K120 resolution at a high refresh rate and color precision.
VRR, FVA, ALLM Support
Variable Refresh Rate (VRR), Fast Frame Transport (FVA), and Auto Low-Latency Mode (ALLM) are supported in the device. VRR enables smoother gameplay by synchronizing the display’s refresh rate with the source device, FVA reduces latency, and ALLM automatically activates game mode on compatible devices.
HDR Support
The matrix is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing enhanced color and contrast reproduction on compatible displays.
HDMI Embedded Audio Formats
Embedded HDMI audio formats supported include uncompressed LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD, providing immersive sound experiences.
2×2 Switch with Dual Output
This is a 2×2 switch with dual output, allowing you to connect and switch between two HDMI sources on two separate displays simultaneously.
Built-In Equalizer, Retiming, and Driver
The system includes a built-in equalizer, retiming, and a driver, which help compensate for signal loss, maintain optimal signal quality, and ensure stable and reliable transmission over longer cable lengths.
Advanced EDID Management
Advanced Extended Display Identification Data (EDID) management is built in, allowing customized and fine-tuned control over video and audio settings, ensuring optimal compatibility and performance.
IR Remote and Front-Panel Control
The device can be controlled using an IR remote control or via front-panel buttons, providing convenient switching between HDMI sources.
Compact Design
The compact design makes it easy to install in various settings and environments and integrates easily into existing setups.
SKU: SW-2X28K Category: Tag:
Processing
Switching Type
IR Remote, Software
Input
Video Inputs
2x HDMI (2.1) Female
Input Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:0 RGB, YUV, YCC)
8K up to 30/60 fps
UHD 4K up to 120 fps
Embedded Audio Input
HDMI
Output
Video Outputs
2x HDMI (2.1) Female
Output Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:0 RGB, YUV, YCC)
8K up to 30/60 fps
DCI 4K up to 60/120 fps
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Micro-USB Firmware Input
HDCP Support
Yes, Version 2.3
HDR Support
Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
DTS Compatibility
DTS, DTS 96/24, DTS Express, DTS-HD High Resolution, DTS-HD Master Audio
Dolby Compatibility
Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (5 VDC at 2 A) Input
Power Consumption
Power Supply: 100 to 240 VAC (6.15 W)
Environmental
Operating Temperature
32 to 104Ā°F / 0 to 40Ā°C
Storage Temperature
-4 to 140Ā°F / -20 to 60Ā°C
Operating Humidity
20 to 90%
Storage Humidity
20 to 90% (Non-Condensing)
General
Dimensions
5.7 x 2.7 x 0.7″ / 145 x 68 x 17Ā mm
Weight
9.3Ā oz / 265Ā g
