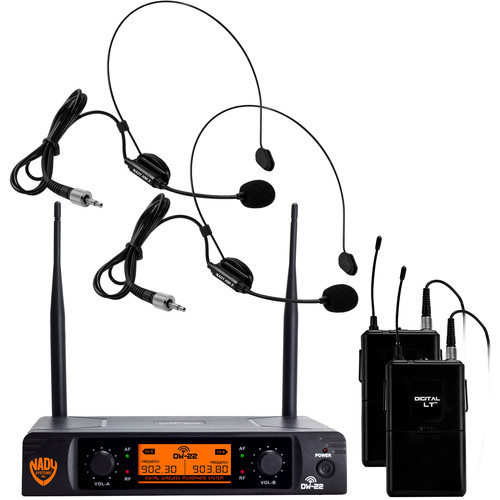

Nady DW-22 HMHM Digital Wireless Microphone System (Dual Headset Mics)


999.00 د.إ

Key Features
  • Streamlined Operation
  • 24-Bit Digital Conversion
  • UHF 900 MHz Band

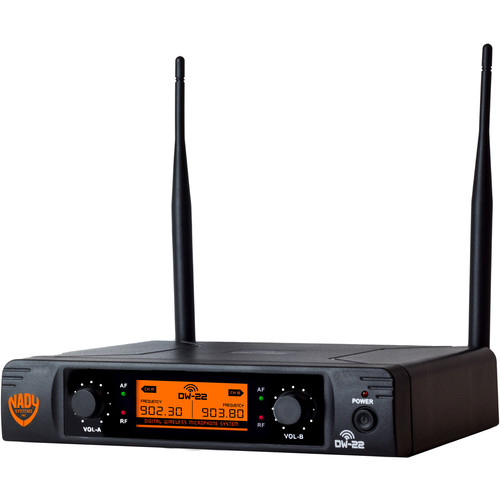

  • Front-Panel LED Display for Monitoring

Nady DW-22Ā Overview

The dual headset mics-equippedĀ DW-22 HMHM Digital Wireless Microphone SystemĀ fromĀ NadySystemsĀ is a streamlined wireless system with 24-bit conversion that will be suitable for performances, karaoke, and other public address applications. It provides a 48 kHz/24-bit digital conversion for audio clarity with frequency response across the entire audible range (20 Hz to 20 kHz).

The included dual bodypack and headset mics provide a line-of-sight operation range of up to 300â¿¿ and operate in the UHF 900 MHz band. The front-panel LED display allows you to monitor audio level from the transmitter and signal strength to the receiver. Perfect for stage performance, karaoke, and public address (presentations, classrooms, and conferences) operation.

Nady DW-22Ā Specs

System
Wireless Transmission Digital UHF (900 MHz)
Number of RF Channels 2
Included Transmitters 2 xĀ Bodypack with Microphone
Diversity Antenna Diversity
RF Frequency Band 902 to 951 MHz
Max Operating Range 300′ / 91.4Ā m (Line of Sight)
Sample Rate/Resolution 48 kHz / 24-Bit
Latency
Dynamic Range 120 dB (Typical)
Encryption None
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Optional Hardware)
Rackmount Size 1 RU (1/2 Rack)

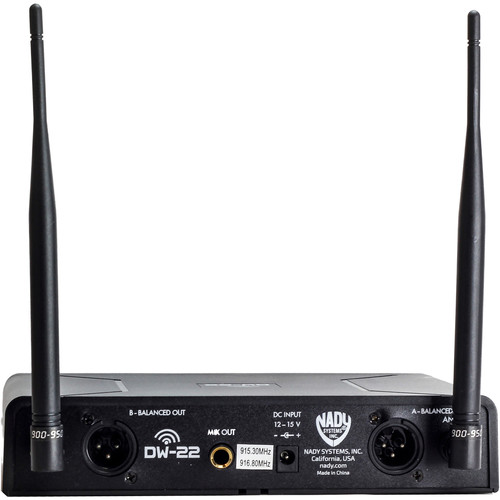

Antenna 2 xĀ 1/4 Wave External, Fixed (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 xĀ 1/4″ TS Female Unbalanced Output
2 xĀ XLR 3-Pin Male Balanced Output
Phantom Power Protection Not Specified by Manufacturer
Frequency Response 20 Hz to 20 kHz ±3 dB
Approximate RF Sensitivity -94 dBm
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 13.5 VDC at 400 mA (Included)
Display & Indicators 1 xĀ Backlit LED (AF Level, Level, Metering, Output Level, Power, RF Level)
Dimensions 6 x 8 x 1.7″ / 152.4 x 203.2 x 43.2Ā mm
Weight 0.7Ā lb / 340Ā g
Transmitter 1
Transmitter
RF Output Power < 50 mW (50 mW Peak)
Audio I/O None
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Power Requirements Battery
Battery Type 2 xĀ AA (Not Included)
Approx. Battery Life 11 Hours (Alkaline)
USB/Lightning Connectivity Yes
Microphone
Form Factor Headset
Output Connectors 2 xĀ 1/8″ / 3.5 mm TRS Female (Lockable)
Packaging Info
Package Weight 2.235 lb
Box Dimensions (LxWxH) 15.7 x 13.5 x 2.9″
