Pyle Pro PDWM2145 2-Person VHF Wireless Microphone System with 2 Lav & 2 Headset Mics (174 to 216 MHz)


Key Features
  • For Two Presenters or Performers
  • Simple to Use, Fixed-Frequency System
  • 2 x Bodypack Transmitters
  • 2 x Lavalier Mics & 2 x Headset Mics

Pyle Pro PDWM2145 Overview

The Pyle Pro PDWM2140 is a two-person wireless microphone system that allows the users to choose between lavalier and headset mics for hands-free presentations and performances. The system is suitable for use in a wide variety of speech and vocal applications including classroom instruction, conference and business presentations, performances, demonstrations, and more.

The two bodypack transmitters are powered by two AA batteries and transmit on separate, fixed VHF frequencies (set at the factory in the 174 to 216 MHz range) to the single two-channel, tabletop receiver. This configuration makes it easy for two presenters or lecturers to wear either headset or lavalier mics plugged into the 3.5mm connectors on the bodypack transmitters. The headset mics offer a closer mic placement and secure positioning, while the lavs can be used if a more discreet appearance is desired.

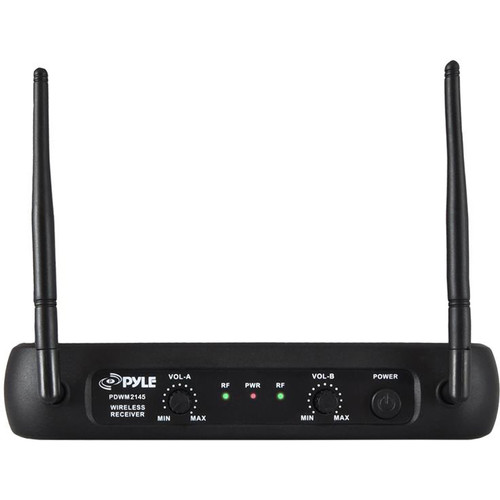

The receiver’s front panel features LEDs to indicate RF signal along with independent volume control knobs for each channel. A single 1/4″ output on the back allows you to plug into a PA system, speaker, mixer, or similar piece of audio equipment, and a 1/4″ connection cable is included. The receiver uses dual independent channel antennas and is designed to deliver high signal-to-noise ratio, high dynamic range, and low distortion.

Use the lav or the headset mics with the bodypack transmitters for two-person presentations, lectures, and performances
The bodypack transmitters run on two AA batteries
The receiver features an independent volume control for both mic channels
The 1/4″ output with an included 1/4″ cable connects to a wide variety of PA systems, speakers, mixers, and other audio gear
High signal-to-noise ratio performance
Broad frequency response range and low distortion
Dual independent channel antennas
RF (radio frequency) signal LED indicators

Pyle Pro PDWM2145 Specs

Wireless Transmission Analog VHF
Number of RF Channels 2
Included Transmitters 2 x Bodypack
Diversity Antenna Diversity
RF Frequency Band 174 to 216 MHz
Max Operating Range 165′ / 50.3 m
Max Systems per Setup 1
Dynamic Range 95 dB
Modulation FM
Form Factor Tabletop
Antenna 2 x External, Fixed (Front-Mount)
Number of Audio Channels 2
Audio I/O 1 x 1/4″ TS Female Unbalanced Output
Word Clock I/O None
Adjacent Channel Isolation >70 dB
Power Requirements AC Input
AC Input Power 120 VAC, 60 Hz
Display & Indicators LED (Power, RF Level)
Dimensions 8 x 1.6 x 5.8″ / 203.2 x 40.6 x 147.3 mm
Transmitter 1
Form Factor Bodypack
RF Output Power 20 mW
Audio I/O 1 x 1/8″ / 3.5 mm TS Female Input
Muting Off/On Switch
Auto-Level Control No
Power Requirements Battery
Battery Type 2 x AA
Display & Indicators LED (Power)
Form Factor Lavalier
Sound Field Mono
Operating Current Consumption 110 mA
Transmitter 2
Microphone 2
Form Factor Headset
Sound Field Mono
Output Connectors 1 x 1/8″ / 3.5 mm TS
Packaging Info
Package Weight 1.9 lb
Box Dimensions (LxWxH) 12.6 x 10.45 x 2.9″
