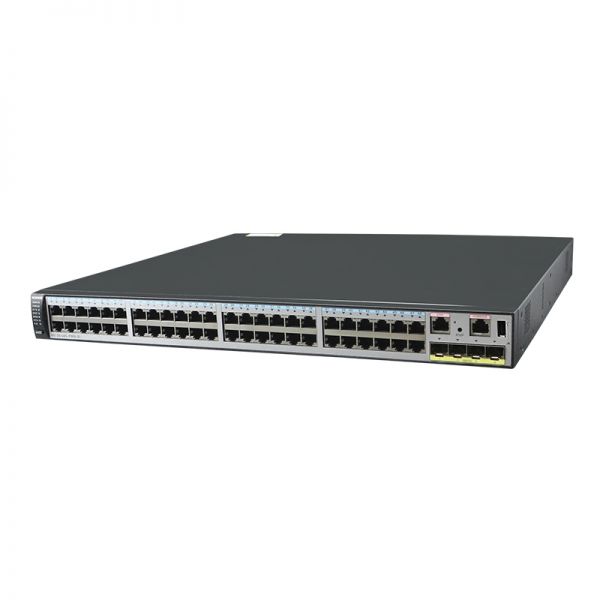

huawei-s5730-68c-pwr-si-ac-45-degree (3)

S5730-68C-PWR-SI-AC – Huawei S5730 Series Switches

Model:	S5730-68C-PWR-SI-AC – Huawei S5730 Series Switches
Detail:	S5730-68C-PWR-SI Bundle (48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, with 500W AC power

AED10,599.00

S5730-68C-PWR-SI-AC is a Huawei S5730-68C-PWR-SI Bundle, providing 48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, and 500W AC power supply. Huawei S5730-SI series switches are next-generation standard gigabit Layer 3 Ethernet switches that provide flexible full gigabit access and cost-effective fixed GE ports and 10 GE uplink ports, meanwhile can provide 40 GE uplink ports with an interface card. The S5730-SI was developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The S5730-SI supports simplified Operations and Maintenance (O&M), intelligent Stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The S5730-SI can be used as an access or aggregation switch on a campus network or as an access switch in a data center.

Quick Spec

Table 1 shows the quick spec.

SKU	S5730-68C-PWR-SI-AC
Ports	48 PoE+ 10/100/1000BASE-T ports, 4 x 10 Gig SFP+
Slots	One interface slot
Power Supply	One 500W AC power supply equipped by default
Forwarding performance	240 Mpps
Switching capacity	680 Gbit/s
PoE Supported	PoE+ Supported
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm

Product Details

Figure 1 shows the front view of S5730-68C-PWR-SI-AC.

Huawei S5730-68C-PWR-SI-AC Front View

Note:

①	One ETH management port	④	One USB port
②	PNP button	⑤	Four 10GE SFP+ ports
③	One console port	⑥	48 PoE+ 10/100/1000BASE-T ports

Figure 2 shows the back view of S5730-68C-PWR-SI-AC.

Huawei S5730-68C-pwr-SI-AC Back View

Note:

①	Ground screw	④	Fan slot
②	ESN label	⑤	Power module slot 2
③	Rear card slot	⑥	Power module slot 1

The Options

Table 2 shows the recommended optional accessories.

Model	Description
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm,40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,40km, LC)
S-SFP-GE-LH80-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm,80km, LC)
eSFP-GE-ZX100-SM1550	eSFP, GE, Single-mode Module (1550nm,100km, LC)
SFP-1000BaseT	1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate,100m
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm,0.1km, LC)
OSXD22N00	Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm,0.22km, LC, LRM)
OMXD30000	Huawei Optical Transceiver OMXD30000, SFP+,10G, Multi-mode Module (850nm,0.3km, LC)
SFP-10G-iLR	Optical Transceiver, SFP+,9.8G, Single-mode Module (1310nm,1.4km, LC)
OSX010000	Optical Transceiver, SFP+,10G, Single-mode Module (1310nm,10km, LC)
OSX040N01	SFP+, 10G, Single-mode Module (1550nm,40km, LC)
SFP-10G-ER-1310	Optical Transceiver, SFP+,10G, Single-mode Module (1310nm,40km, LC)
SFP-10G-CU3M	Huawei SFP+,10G, High Speed Direct-attach Cables,3m, SFP+20M, CC2P0.254B(S), SFP+20M, Used indoor

Compare to Similar Items

Table 3 shows the comparison.

Item	S5730-48C-SI-AC	S5730-48C-PWR-SI-AC	S5730-68C-SI-AC	S5730-68C-PWR-SI-AC	S5730-68C-PWR-SI
Fixed Ports	24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+	24 x 10/100/1,000 Base-T, 8 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
MAC Address Table	32K MAC	32K MAC	32K MAC	32K MAC	32K MAC
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm	442 mm x 420 mm x 44.4 mm
Slot	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card

Category: Network Switches & Routers

S5730-68C-PWR-SI-AC Specification
Fixed Ports	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
PoE Supported	PoE+ Supported
MAC Address Table	32K MAC
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm
Slot	One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
Input Voltage	AC: Rated AC voltage: 100V to 240V; 50/60 Hz Max AC voltage: 90V to 264V; 47 Hz to 63 Hz
Input Voltage	DC: Rated DC power: -48V to -60V Max DC voltage: -36V to -72V
Maximum Power Consumption	Without card and PD: 68.3W Without card and full PoE load: 925W (switch power consumption: 185W, PoE: 740W) with AC 500W/DC 650W power supply
Typical Power Consumption (without PD) Operating Temperature	Without card: 50.1W
	0m to 1,800m altitude: 0°C to 45°C (long-term); -5°C to 50°C (short-term) 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude.
Relative Humidity	5% to 95% (non-condensing)
Heat Dissipation	Heat dissipation using fans supporting intelligent speed adjustment
Surge Protection	Surge protection capability of service ports: 7 kV
MAC Address Table	IEEE 802.1d compliance
	32K MAC address entries
	MAC address learning and aging
	Static, dynamic, and blackhole MAC address entries
	Packet filtering based on source MAC addresses
VLAN	4094 VLANs
	Guest VLAN and voice VLAN
	GVRP
	MUX VLAN
	VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
	1:1 and N:1 VLAN mapping
Reliability	RRPP ring topology and RRPP multi-instance
	Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover
	SEP
	STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
	ERPS (G.8032)
	BPDU protection, root protection, and loop protection
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Multicast	PIM DM, PIM SM, and PIM SSM
	IGMP v1/v2/v3 and IGMP v1/v2/v3 snooping and IGMP fast leave
	MLD v1/v2 and MLD v1/v2 snooping
	Multicast forwarding in a VLAN and multicast replication between VLANs
	Multicast load balancing among member ports of a trunk
	Controllable multicast
	Port-based multicast traffic statistics
IPv6 Features	Neighbor Discovery (ND)
	Path MTU (PMTU)
	IPv6 ping, IPv6 tracert, and IPv6 Telnet
	6to4 tunnel, ISATAP tunnel, and manually configured tunnel
	ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
QoS/ACL	Rate limiting on packets sent and received by a port
	Packet redirection
	Port-based traffic policing and two-rate three-color CAR
	Eight queues on each port
	WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms
	Re-marking of the 802.1p priority and DSCP priority
	Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID
	Rate limiting in each queue and traffic shaping on ports
Security	Hierarchical user management and password protection
	DoS attack defense, ARP attack defense, and ICMP attack defense
	Binding of the IP address, MAC address, port number, and VLAN ID
	Port isolation, port security, and sticky MAC
	MFF
	Blackhole MAC address entries
	Limit on the number of learned MAC addresses
	IEEE 802.1x authentication and limit on the number of users on a port
	AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
	SSH v2.0
	HTTPS
	CPU defense
	Blacklist and whitelist
	IEEE 802.1x authentication, MAC address authentication, and Portal authentication
	DHCPv4/v6 client/relay/server/snooping
	Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets
SVF	Plug-and-play SVF client
	Automatic software and patch loading to clients
	One-click and automatic delivery of service configurations
	Independent client running
OAM	Software OAM
	EFM OAM
	CFM OAM
	Y.1731 performance test
Management and Maintenance	iStack (using service ports as stack ports)
	Virtual cable test
	SNMP v1/v2c/v3
	RMON
	Web-based NMS
	System logs and alarms of different levels
	802.3az EEE
	sFlow
	Intelligent O&M
Interoperability	Supports VBST (compatible with PVST/PVST+/RPVST)
	Supports LNP (similar to DTP)
	Supports VCMP (similar to VTP)
