S6720-26Q-LI-24S-AC – Huawei S6700 Series Switches

Add to Wishlist

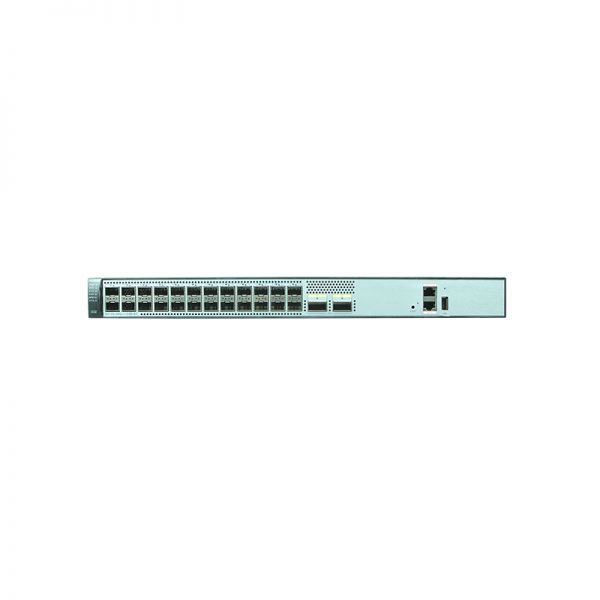

Model: S6720-26Q-LI-24S-AC – Huawei S6700 Series Switches
Detail:
S6720-26Q-LI-24S-AC(24 10 Gig SFP+,2 40 Gig QSFP+,AC 110/220V)

AED10,799.00

Add to Wishlist

The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code S6720-26Q-LI-24S-AC
Fixed ports 24x10GE port, 2x40GE port
Dimensions (W x D x H, mm) 420 x 220 x 43.6
Chassis height(U) 1U
CPU Frequency 1 GHz
CPU Cores 2
Memory (RAM) 1 GB
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 3 A
Minimum power consumption 100.2 W



SKU: S6720-26Q-LI-24S-AC Category: Tags: ,

S6720-26Q-LI-24S-AC Specification
Physical specifications Chassis dimensions (W x D x H, mm) 420 x 220 x 43.6
Chassis height 1 U
Fixed port 10GE port 24
40GE port 2
Management port ETH management port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1 GHz
Cores 2
Memory Memory (RAM) 1 GB
Flash Hardware: 512 MB, of which 240 MB is available for users
Power supply system Power supply type Built-in AC
Power supply redundancy Built-in single power supply and RPS in 6:1 mode
RPS Supported
Rated voltage range AC: 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
Maximum input current 3 A
Maximum power consumption of the device 100.2 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules 3
Airflow Air flows in from the left side and front panel, and exhausts from the right side.
Maximum heat dissipation of the device (BTU/hour) 342
Environment parameters Long-term operating temperature 0-1800 m: 0°C to 45°C

1800-5000 m: The operating temperature decreases 1°C for every 220 m increase in altitude.
Storage temperature -40°C to +70°C
Relative humidity 5%-95% (non-condensing)
Operating altitude 5000 m
Noise under normal temperature (sound power) 46.5 dB(A)
Noise under high temperature (sound power) 72.9 dB(A)
