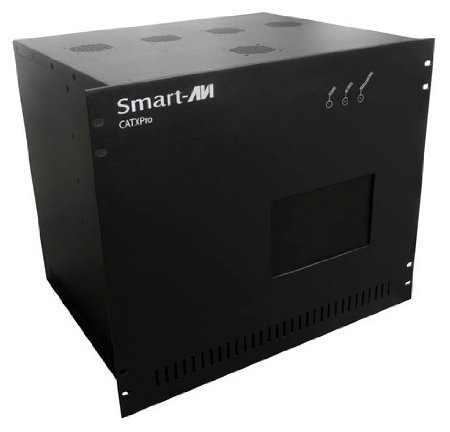

Smart-AVI CSWX32X16S CATXPro



 CSWX32X16S CATXPro 32×16  Video Matrixunit routes Audio, video, IR and RS232 signals from several different Video sources out to multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/6 UTP cable. CATXPro is capable of connecting to as many as 64 video sources via transmitters and 64 Video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units. A single audio/video output can be routed to one or multiple destinations. Video is transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buffered video outputs and analog delivery of stereo audio maintains optimum integrity throughout the system. Special remote boxes offer compatibility with Video Composite , UXGA, Component Video and S-Video.

Product Features



  • Supports high resolution Video up to 1920×1200
  • High quality audio switching
  • Infrared, RS232 and Optional TCP/IP control
  • PC windows software control
  • Integral UTP distribution
  • Rackmounted chassis
  • Uses easy to install, inexpensive CAT5/5e/6/7
  • Maximum extension of 1,000 feet between the local and remote units
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / polarity preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length


Specifications



Video Data

Bandwidth
250MHz
Input signal level
1Volt pk-pk into 75R
Output impedance
100 Ohms
Input Impedance
75R Ohms
Connector
RJ45
Format
VGA/SVGA/XGA/RGB
Audio

Bandwidth
20KHz
Signal level
0dB
Output Impedance
100 Ohms
Input Impedance
10K Ohms
Input Connector
VIA RJ45
Syncs

Bandwidth
Digital
Signal level
5V
Output Impedance
100 Ohms
Input Impedance
10K Ohms
Input Connector
HD15 Socket
Cat5 Signals

Pair 1
Red Video balanced 1 V pk-pk + audio left
Pair 2
Green video balanced 1 V pk-pk + audio right
Pair 3
Blue video balanced 1 V pk-pk + sync
Pair 4
Data RS232 and IR
Control

IR
Remote Unit
RS232
Software
Power

Voltage
90-230V
Connector
IEC
Fuse rating
1A A/S
Frequency
50/60 Hz
Mechanical

Height
15.75 in.
Width
17 in.
Depth
14 in.
Weight
20 lbs.
Rack Units
9U
