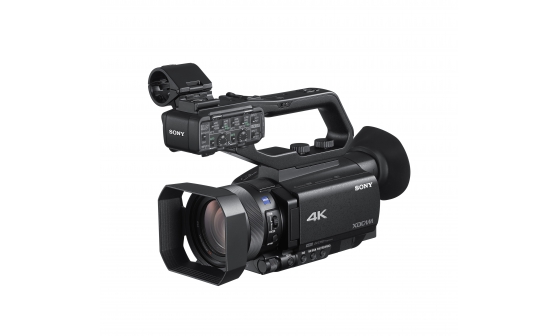

SONY 1.0 type Exmor RS™ CMOS sensor palm-sized XDCAM camcorder with XAVC 4K, Fast Hybrid AF, Instant HDR Workflow & 3G-SDI PXW-Z90

Availability:

10 in stock
Add to Wishlist

AED8,399.00

10 in stock

Add to Wishlist

1.0 type Exmor RS™ CMOS sensor palm-sized XDCAM camcorder with XAVC 4K, Fast Hybrid AF, Instant HDR Workflow & 3G-SDI



HIGHLIGHTS

    • Single 1″ Exmor RS CMOS Sensor
    • UHD 4K (3840 x 2160) up to 30p
    • Phase-Detection Autofocus (AF)
    • 4K HDR with Hybrid Log-Gamma (HLG)
    • Zeiss 12x Optical / 18x Clear Image Zoom
    • Full HD to 120 fps/Super Slow to 960 fps
    • XAVC HD / QFHD & MPEG2 HD Recording
    • S-Log3/S-Gamut3 Imaging Options
    • 3G-SDI Output, 2.4 / 5 GHz Streaming
    • 2 x SD Card Slots, Relay & Simul Modes



Sony 4K HDR XDCAM with Fast Hybrid AF offers phase-detection autofocus (AF) and HDR capabilities in a compact, palm-style body. Suitable for corporate events, broadcast news, and television production, the PXW-Z90V camcorder features a stacked 1″ Exmor RS CMOS sensor with UHD 4K (3840 x 2160) resolution, a 12x Zeiss optical zoom, an OLED viewfinder, and 3.5″ touchscreen LCD monitor. It can record 4K in XAVC Long at 4:2:0, HD in XAVC Long at 4:2:2 10-bit, as well as MPEG HD at 4:2:2 (requires optional license key). S-Log3/S-Gamut3 functions offer users additional image control.

The PXW-Z90V’s Fast Hybrid AF uses high-density placement of autofocus points and a newly developed AF algorithm to offer highly accurate focusing and tracking—a boon when shooting UHD 4K, especially for individual operators. In movie recording mode, use the appearance of phase-detection AF frames to monitor your subject’s focus. The PXW-Z90V’s 3.5″ touchscreen is used to quickly switch focus among subjects. AF Drive Speed, Tracking Depth Range, and Subject Switching Sensitivity can each be configured to suit different subjects and content styles.

Hybrid Log-Gamma (HLG) enables you to future-proof your output by smoothly integrating your 4K recordings into an HDR workflow without the need for color grading during post-production. Capture images with high-quality contrast and resolution using the PXW-Z90V’s 12x optical Zeiss zoom, and 18x 4K digital zoom (24x in HD). An integrated ND filter function enables greater exposure and depth-of-field control.

The PXW-Z90V camera supports Sony’s Slow and Quick Motion for shooting HD video at variable frame rates, including 120 fps. Recording to a variety of formats, frame rates, and codecs, the camcorder supports 100 Mb/s XAVC Long recording of 4K UHD video at up to 29.97p, and 50 Mb/s capture of HD up to 59.94p. Footage is recorded to two SD memory card slots, either simultaneously to both cards or in relay mode to create a backup. The PXW-Z90V’s 3G-SDI output offers integration with professional studio environments.





Stream directly to major online platforms

Live streaming instantly connects you with your audience, wherever you are. From weddings and live events to interviews and seminars — capture high-quality images and share them in real time on major online video platforms. Set up your own streaming channel with your smartphone or tablet, connect via Wi-Fi, and you’re ready to go.*

*Free upgrade due for release in 2019. Some functions may be restricted while streaming. Detailed information will be shared at the time of firmware release.

**Separate accessories (VMC-UAM2, CBK-NA1) are required for Ethernet connection.



Simple Live Solution for Multi-Camera

For more advanced live streaming applications, the Z90 is easily connected to Sony’s compact MCX-500 Multi-Camera Live Producer via SDI or HDMI. The MCX-500 makes it easy for a single operator to run a multi-camera shoot, live streaming onto social media platforms with transitions, titling, picture-in-picture, Chroma key, and more. Tally and synchronized remote control functionality are also enabled with RM-30BP remote commander.



Revolutionary imaging performance with Exmor RS

To deliver imaging performance previously impossible for a compact camcorder, a large 14.2-megapixel (effective) 1.0-type stacked CMOS image sensor delivers beautiful background bokeh defocus effects and superior sensitivity for capturing high-quality images with less noise, even under dark or bright conditions. This sensor integrates up to 273 phase-detection AF points that densely cover approx. 84% of the image area, for precise tracking of subjects throughout the shooting frame. The sensor gives you low noise and less blur because more light reaches the sensor, offering clear and steady pictures even in a dark scene with minimum illumination 1.7 lux*.

*LOW LUX mode.

Auto Focus Creative Control

AF Drive Speed means you set the speed at which focus switches — rapid for a sports event and slow for a drama production. It’s easy to get the results you need. AF Track Depth allows you to choose a Wide depth of field when a subject is fast moving, while Narrow fine tunes performance for a subject at a consistent distance. AF Switching Sensitivity lets you lock tight to a single subject or fluidly switch focus — such as when shooting a line of runners.



Instant HDR workflows

Shoot, edit, and view HDR content in HLG without the need for additional color grading.

As the expanding need for HDR content continues, Internet video platforms and professionals producing corporate or event content are paying more attention to the added value of HDR. They need to deliver content quickly, without compromising on imaging expression and quality of content. To meet this demand, the PXW-Z90 offers Hybrid Log-Gamma (HLG) recording, in addition to S-Log3, for easy file-based workflows, while achieving the image quality of HDR. This simple workflow enables the shooting, editing, and viewing of HDR content in HLG, without devoting a lot of time to post-production work and additional color grading.



Broadcast-quality 4K (QFHD) and HD

The PXW-Z90 allows you to record a wide range of 4K (QFHD) and HD formats for maximum flexibility from this stunning palm-sized camcorder. The Z90 supports XAVC QFHD 100 Mbps recordings at 30 p / 25 p / 24 p, XAVC HD Long GOP 422 50 Mbps, MPEGHD422 50 Mbps*, MPEGHD420 35 Mbps and AVCHD.

*MPEG HD recording requires optional license (CBKZ-SLMP) upgrade.



Networked for high mobility

The PXW-Z90 comes with 5 GHz* and 2.4 GHz Wi-Fi as standard – simply turn on and log onto your preferred network to enable a host of advanced wireless production features:

*5 GHz support dependent on country/regional regulation.

  • QoS Streaming to XDCAM air allows images to be streamed live from the camcorder for viewing at a remote location
  • FTP Transfer allows content files recorded with MPEG HD 422/420 proxy feature (CBKZ-SLMP required) and other content files shot in XAVC (QFHD/FHD) and AVCHD formats to be sent over the internet for remote storage on an FTP server
  • XDCAM air can upload proxy footage to the cloud from multiple camera operators in the field, so editing can start immediately. Uploaded content can be accessed securely from any location. News teams can even start logging clips while shooting’s still going on, saving even more valuable time when a story’s breaking
  • Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile™ allows the PXW-Z90 to be remotely controlled from a smartphone or tablet computer (iOS 9.0 – 10.3 or Android 4.4 through 7.1) via a Wi-Fi connection. One-touch authentication is also possible with smartphones that offer NFC connectivity
  • Wired LAN connection allows the PXW-Z90 to be connected to the internet over a wired connection via the separately available VMC-UAM2 USB adapter cable and network adapter kit (CBK-NA1), allowing files to be streamed or transferred by FTP

*The Content Browser Mobile™ application can be downloaded from the Google Play Store or App Store. Wi-Fi operation cannot be guaranteed with all smartphones and tablet computers.

SKU: PXW-Z90 Categories: , Tags: , , , , ,
General

Important Note
PXW-Z90 is available from Sony as two SKUs. PXW-Z90V supports both 5 GHz and 2.4 GHz Wi-Fi. PXW-Z90T supports 2.4 GHz Wi-Fi. Availability is determined by country/regional regulations.
Mass
Approx 1020g (with lens hood, eyecup)
Approx. 2 lb 4.0 oz (with lens hood,eyecup)
Approx. 1390g (with lens hood, handle, eyecup, NP-FV70A battery)
Approx. 3lb 1oz (with lens hood, handle, eyecup, NP-FV70A battery)
Dimensions (W x H x D)
121.0mm×104.0mm×274.5mm (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
4 7/8 x 4 1/8 x 10 7/8 inches (With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
130.0 x 181.5 x 287.0 mm (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
5 1/8 x 7 1/4 x 11 3/8 inches (With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
Power Requirements
DC In: 8.4V
Battery: 7.4V
Power Consumption
Approx. 6.5 W(while recording with viewfinder and XAVC QFHD 2160/30p 60Mbps)
Approx. 6.9 W (while recording with LCD and XAVC QFHD 2160/30p 60Mbps)
Operating Temperature
0°C to 40°C
32°F to 104°F
Storage Temperature
-20°C to +60°C
-4°F to +140°F
Battery Operating Time
Approx. 140min. with NP-FV70A battery (while recording with LCD, XAVC QFHD 2160/30p, 60Mbps)
Approx. 265 min. with NP-FV70A battery (while playing with LCD, XAVC QFHD 2160/30p, 60Mbps)
Recording Format (Video)
XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 (CBKZ-SLMP required) : MPEG-2 422P@HL 4:2:2 Long profile
MPEG HD420 (CBKZ-SLMP required) : MPEG-2 MP@HL 4:2:0 Long profile
MPEG HD Proxy (CBKZ-SLMP required) : MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
Recording Format (Audio)
XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
XAVC HD : Linear PCM 2ch, 24bit, 48kHz
XAVC Proxy : AAC-LC 2ch、16bit、48kHz
MPEG HD422 (CBKZ-SLMP required) : Linear PCM 2ch, 24bit, 48kHz
MPEG HD420 (CBKZ-SLMP required) : Linear PCM 2ch, 16bit, 48kHz
MPEG HD Proxy (CBKZ-SLMP required) : AAC-LC 2ch、16bit、48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
Recording Frame Rate
XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 29.97p, 25p, 23.98p, 50Mbps/35Mbps
XAVC HD (1920 x 1080) @59.94i, 50i, 50Mbps/35Mbps/25Mbps
XAVC HD (1280 x 720) @59.94p, 50p, 50Mbps
XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
MPEG HD422 (1920 x 1080) (CBKZ-SLMP required) @59.94i, 50i, 29.97p, 25p, 23.98p, 50Mbps
MPEG HD422 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 50Mbps
MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode(35Mbps)
MPEG HD420 (1440 x 1080) (CBKZ-SLMP required) @59.94i, 50i, HQ mode(35Mbps)
Recording Frame Rate (Cont.)
MPEG HD420 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, HQ mode(35Mbps)
MPEG HD Proxy (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
MPEG HD Proxy (640 x 360) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28Mbps)
AVCHD (1920 x 1080) @59.94i/50i FX mode (24Mbps) FH mode(17Mbps)
AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24Mbps)
AVCHD (1440 x 1080)@59.94i, 50i LP mode (5Mbps)
AVCHD (1280 x 720)@59.94p, 50p, HQ mode (9Mbps)
Recording/Playback Time
XAVC QFHD @LPCM 2ch 100 Mbps
Approx. 65 min with 64 GB memory card
XAVC QFHD @LPCM 2ch 60 Mbps
Approx. 100 min with 64 GB memory card
XAVC HD @LPCM 2ch 50 Mbps
Approx. 120 min with 64 GB memory card
XAVC HD @LPCM 2ch 35 Mbps
Approx. 170 min with 64 GB memory card
XAVC HD @LPCM 2ch 25 Mbps
Approx. 220 min with 64 GB memory card
MPEG HD422 (CBKZ-SLMP required) @LPCM 2ch 50 Mbps
Approx. 110 min with 64 GB memory card
MPEG HD420 (CBKZ-SLMP required) @LPCM 2ch HQ Mode
Approx. 170 min with 64 GB memory card
AVCHD @LPCM 2ch PS Mode
Approx. 305 min with 64 GB memory card
AVCHD @LPCM 2ch FX Mode
Approx. 360 min with 64 GB memory card
Recording/Playback Time (cont.)
AVCHD @LPCM 2ch FH Mode
Approx. 495 min with 64 GB memory card
AVCHD @LPCM 2ch HQ Mode
Approx. 880 min with 64 GB memory card
AVCHD @LPCM 2ch LP Mode
Approx. 1540 min with 64 GB memory card
Lens

Lens Mount
Fixed
Zoom Ratio
12x (optical), servo
Focal Length
f=9.3 – 111.6mm
equivalent to f=29.0 – 348.0mm on 35 mm lens(16:9)
equivalent to f=32.8 – 393.6mm on 35mm lens(3:2)
Iris
F2.8 – F4.5
auto/manual selectable
Focus
AF/MF selectable
10 mm to ∞ (Wide)
1000 mm to ∞ (Tele)
Image Stabilizer
ON/OFF selectable, shift lens
Filter Diameter
M62 mm
Important Note
PXW-Z90 is available from Sony as two SKUs. PXW-Z90V supports both 5 GHz and 2.4 GHz Wi-Fi. PXW-Z90T supports 2.4 GHz Wi-Fi. Availability is determined by country/regional regulations.
Camera Section

Imaging Device (Type)
1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
Effective Picture Elements
Approx.14.2M pixels(16:9)/Approx.12.0M pixels(3:2)
Built-in Optical Filters
OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
Minimum Illumination
Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)

LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)

Shutter Speed
[60i]: 1/8 – 1/10,000
(1/6 – 1/10,000 when shooting with 24p)
[50i]: 1/6 -1/10,000
Slow & Quick Motion Function
[60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
Super Slow Motion
[60i]1080p:Frame rate selectable 240,480,960fps
[50i]:1080p:Frame rate selectable 250,500,1000fps
White Balance
Preset（Indoor:3200K, Outdoor:5600K±7 steps, Color temparature set range:2300-15000K)
Onepush A, B, Auto selectable
Gain
-3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve
Selectable
Input/Output

Audio Input
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Video Output
Integrated into Multi/Micro USB jack（×1）, Composite 1.0Vp-p, 75Ω
Audio Output
Integrated into Multi/Micro USB jack
SDI Output
BNC (x1), 3G/HD/SD
SMPTE 424M/292M/259M standards
USB
Multi/Micro USB jack (x1)
Headphone Output
Stereo mini jack (x1)
Speaker Output
Monaural
DC Input
DC jack
Remote
Integrated into Multi/Micro USB jack
Stereo mini-mini jack (Φ2.5mm)
HDMI Output
Type A (x1)
Monitoring

Viewfinder
1.0cm（0.39 type）OLED
Approx. 2.36M dots
LCD
8.8cm（3.5 type)
Approx. 1.56M dots
Built-in Microphone

Built-in Microphone
Omni-directional stereo electret condenser microphone
Media

Type
Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1
Wi-Fi/NFC

Supported format
IEEE 802.11 a/b/g/n/ac
Frequency band
2.4 GHz bandwidth
5.2/5.3/5.6/5.8 GHz bandwidth*

*Depending on country/regional regulation and only on PXW-FZ90V SKU.

Security
WEP/WPA-PSK/WPA2-PSK
NFC
NFC Forum Type 3 Tag compliant
Supplied Accessories

Supplied Accessories
XLR handle unit (1)
Lens hood (1)
Lens cap (1)
Large eyecup (1)
Accessory shoe kit (1)
USB cable (1)
Rechargeable battery pack (NP-FV70A) (1)
AC Adaptor (AC-L200D) (1)
Power cord (mains lead) (1)
Wireless Remote Commander (RMT-845) (1)
Lithium battery (CR2025 for the Wireless Remote Commander) (1), Pre-installed to the Wireless Remote Commander
Operating Guide (2)
CD-ROM “Manuals for Solid-State Memory Camcorderr” (1)
Warranty (1)
*
[60i]: when [60i/50i SEL] is set to 60i
[50i]: when [60i/50i SEL] is set to 50i
