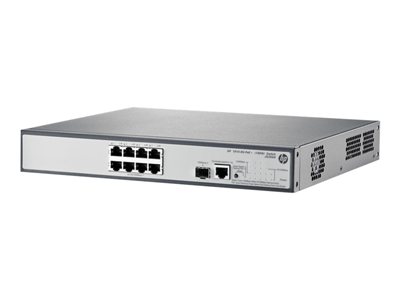

HPE 1910-8G-PoE+ (180W) Switch – switch – 8 ports – managed – rack-mountable JG350A#ABA
Availability:
10 in stock
HP 1910 Series 8-Port 180W Gigabit PoE+ Switch
The HPE 1910 Switch Series, part of the HPE OfficeConnect portfolio, delivers Fast Ethernet connectivity for cost-conscious smaller organizations. The switches are ideal for environments that require granular control and where smart-managed flexibility is a must for easy network configuration and management. The 1910 Switch Series provides advanced, smart-managed, fixed-configuration switches in an easy-to-administer solution. Customizable features include basic layer 2 features like VLANs and link aggregation and advanced features such as Layer 3 static routing and ACLs.
Simplifies Network Deployment and Management for Small Organizations
- The HPE 1910 Switch Series features easy-to-use, out-of-the box, plug-and-play deployment.
- Series offers a complete portfolio of choices for increased flexibility. It consists of five rack-mountable models with internal power supplies including three non-Power over Ethernet (PoE) models: 8-, 24- and 48-port and two PoE+ models: 8- and 24-port. All models come with two combo uplink ports.
- These smart-managed switches use an intuitive Web management interface to simplify deployment and management while offering you greater granularity of control of key features.
Keeps Your Business up and Running and Protected
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection, and supports secure http (https).
- The 1910 Switch Series is covered by the Hewlett Packard Enterprise Limited Lifetime Warranty.
Delivers Improved Performance, While Lowering Total Cost of Ownership (TCO)
- The HPE 1910 Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, IPv6 support, rate limiting, link aggregation, and IGMP.
- The switch series includes PoE+ options to power IP devices without the cost of additional power outlets.
- Advanced silicon technology delivers greater energy-efficiency and the Limited Lifetime Warranty significantly reduce TCO.
Specifications
General
| Device Type | Switch – 8 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 1 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Throughput: 13.4 Mpps Switching capacity: 18 Gbps |
| Capacity | Routing table entries: 32 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | Static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 1, RMON 2, SNMP, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Authentication Method | RADIUS |
| Features | Flow control, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Processor | 1 x ARM: 333 MHz |
| RAM | 128 MB |
| Flash Memory | 128 MB |
Expansion / Connectivity
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ 1 x SFP (mini-GBIC) |
Power
| Voltage Required | AC 120/230 V (50/60 Hz) |
Miscellaneous
| Rack Mounting Kit | Included |
| Compliant Standards | VCCI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, UL 60950, ICES-003 Class A, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A |
| Localization | English / United States |
Dimensions & Weight
| Width | 10.2 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 6.61 lbs |
Manufacturer Warranty
| Service & Support | Limited warranty – lifetime |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| General | |
|---|---|
| Authentication Method | RADIUS |
| Capacity | Routing table entries: 32 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch – 8 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
| Flash Memory | 128 MB |
| MAC Address Table Size | 8K entries |
| Performance | Throughput: 13.4 Mpps ¦ Switching capacity: 18 Gbps |
| Ports | 8 x 10/100/1000 (PoE+) + 1 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM: 333 MHz |
| RAM | 128 MB |
| Remote Management Protocol | SNMP 1, RMON 2, SNMP, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Routing Protocol | Static IPv4 routing, static IPv6 routing |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 6.61 lbs |
| Width | 10.2 in |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Max Operating Temperature | 113 °F |
| Min Operating Temperature | 32 °F |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 1 x SFP (mini-GBIC) |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty – lifetime |
| Miscellaneous | |
|---|---|
| Compliant Standards | VCCI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, UL 60950, ICES-003 Class A, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A |
| Localization | English / United States |
| Rack Mounting Kit | Included |
| Power | |
|---|---|
| Voltage Required | AC 120/230 V (50/60 Hz) |
