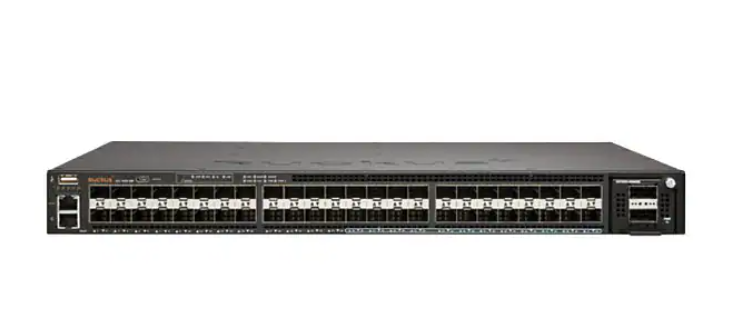

Ruckus ICX 7650-48F – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48F
  • managed
  • front to back airflow
  • Switch
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 24 x Gigabit SFP + 4 x QSFP
  • rack-mountable

AED106,299.00

Add to Wishlist

Know your gear

SKU: ICX7650-48F-E2 Category: Tag:
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7650-48F
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 16 GB
RAM Installed 4 GB
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 2 fans, 5MB packet buffer, 802.1x authentication, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, DiffServ support, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), GARP VLAN Registration Protocol (GVRP), IGMP fast leave, IGMP proxy, IGMP snooping, Link Fault Signaling (LFS), Loopback detection, MAC address filtering, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, NTP time synchronization, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port mirroring, Priority-based flow control, Remote Fault Notification (RFN), Root Guard, Secure Copy (SCP), sFlow, Strict Priority (SP), Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 80,000 entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol BGP for IPv6, BGP-4, BGP-4+, ECMP, GRE, MSDP, OSPF for IPv6, OSPFv2, OSPFv3, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3
Stackable Yes
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots QSFP
Connectivity
Port Quantity 24
Port Type 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd) Gigabit SFP
Power
Frequency 50/60 hertz
Hot-Plug Yes
Power Consumption Operational 216 watt
Power Provided 250 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
MTBF 243,130 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity IPv4 routes: 128,000, IPv6 routes: 7,000, Multicast groups: 8,192, Next hop address: 12,000, Ports per trunk group: 16, PVLANs supported: 256, QoS queues: 10, Trunk groups: 256, Virtual Routing and Forwarding (VRF) instances: 50, VLANs supported: 4,095
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 839 Mpps, Switching capacity: 1.128 Tbps
Ports (2nd) Quantity 24
Ports (3rd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 16.75 lbs
Width 17.3 inch
Depth 16 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Class A certified, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified No
